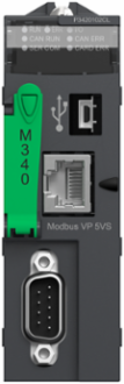

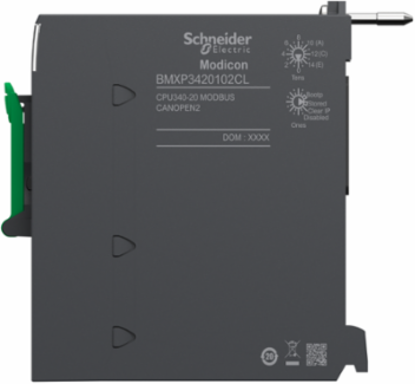

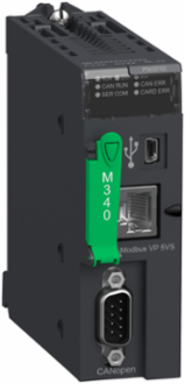

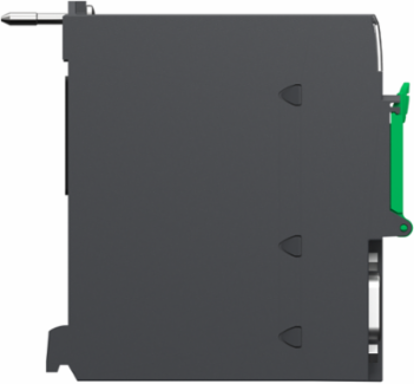

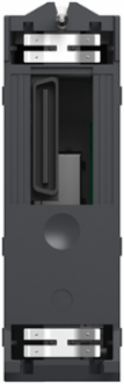

Schneider Electric BMXP3420102CL Modicon M340 Processor, 1024 Discrete + 256 Analog I/O, 4096MB RAM, IP20
- MPN: BMXP3420102CL
- PPN: SCH-BMXP3420102CL
CAD
$2388.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This performance processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It has a high memory capacity of 4096MB and it can support up to 1024 discrete I/Os and 256 analog I/Os in a multi-rack configuration. It embeds CANopen communication services thanks to its integrated CANopen port. It can be configured so as to be compatible with all commercially available CANopen third-party products. It features a 9-way SUB-D connector for the integrated CANopen master bus. Its current consumtion is 90 mA at 24V DC. It weighs 0.021kg. This performance processor enables CANopen communication. This processor has an IP20 protection rating. It requires a memory card to work (not supplied). The module is delivered in 2 packing units. The processor is to be installed next to the power supply module, and on the main rack in a multi-rack configuration. Modicon products are hightly compatible and allow easy migration. Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Modicon M340 automation platform |
|---|---|
| Condition Of Use | requires a memory card to work (not supplied) |
| Analogue I/O Processor Capacity | 256 I/O multi-rack configuration || 66 I/O single-rack configuration |
| Monitoring | diagnostic counters Modbus || event counters Modbus |
| Discrete I/O Processor Capacity | 1024 I/O multi-rack configuration || 704 I/O single-rack configuration |
| Number Of Racks | 4 |
|---|---|
| Product Or Component Type | processor module |
| Number Of Slots | 11 |
| Number Of Application Specific Channel | 36 |
Complementary
| Number Of Devices Per Segment | 0-32 character mode) || 0-32 Modbus) || 0-16 205 m CANopen) || 0-32 185 m CANopen) || 0-64 160 m CANopen) |
|---|---|
| Status Led | 1 LED (green) integrated machine/installation bus operational (CAN RUN) || 1 LED (green) processor running (RUN) || 1 LED (red) I/O module fault (I/O) || 1 LED (red) integrated machine/installation bus fault (CAN ERR) || 1 LED (red) memory card fault (CARD ERR) || 1 LED (red) processor or system fault (ERR) || 1 LED (yellow) activity on Modbus (SER COM) |
| Requests | 1 K data bytes per request character mode || 252 data bytes per RTU request Modbus || 504 data bytes per ASCII request Modbus |
| Default Size Of Object Areas | 1024 %MWi internal words located internal data || 256 %KWi constant words located internal data || 512 %Mi located internal bits |
| Marking | CE |
| Net Weight | 0.21 kg |
| System Overhead | 0.13 ms fast task || 0.7 ms master task |
| Maximum Size Of Object Areas | 256 kB unlocated internal data || 32634 %Mi located internal bits |
| Number Of Devices | 2 point-to-point character mode || 2 point-to-point Modbus |
| Control Parameter | one CRC on each frame (RTU) Modbus || one LRC on each frame (ASCII) character mode || one LRC on each frame (ASCII) Modbus |
| Number Of Addresses | 0-248 character mode || 0-248 Modbus |
| Motion Control | independent axis CANopen |
| Bus Length | 0-10 m serial link non isolated character mode segment || 0-10 m serial link non isolated Modbus segment || 0-1000 m serial link isolated character mode segment || 0-1000 m serial link isolated Modbus segment || 0-15 m character mode point-to-point || 0-15 m Modbus point-to-point |
| Control Channels | programmable loops |
| Integrated Connection Type | non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex || non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || USB port 12 Mbit/s || CANopen master bus SUB-D 9 2 twisted shielded pairs 20 kbit/s...1 Mbit/s |
|---|---|
| Communication Module Processor Capacity | 2 Ethernet communication module || 4 AS-Interface module |
| Supply | internal power supply via rack |
| Transmission Rate | 1 Mbit/s 0-20 m 0-0.6 m || 125 kbit/s 0-500 m 0-10 m || 20 kbit/s 0-2500 m 0-300 m || 250 kbit/s 0-250 m 0-10 m || 50 kbit/s 0-1000 m 0-120 m || 500 kbit/s 0-100 m 0-10 m || 800 kbit/s 0-40 m 0-6 m |
| Current Consumption | 90 mA 24 V DC |
| Application Structure | 64 event tasks || no auxiliary task || 1 cyclic/periodic master task || 1 periodic fast task |
| Communication Service | Network management (NMT) CANopen || Process Data Object (PDO) CANopen || Service Data Object (SDO) CANopen || special functions (SYNC, EMCY, TIME) CANopen |
| Maximum Tap Links Length | <15 m serial link non isolated character mode segment || <15 m serial link non isolated Modbus segment || <40 m serial link isolated character mode segment || <40 m serial link isolated Modbus segment |
| Execution Time Per Instruction | 0.12 µs Boolean || 0.17 µs double-length words || 0.25 µs single-length words || 1.16 µs floating points |
| Bus Type | CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA || CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
| Number Of Instructions Per Ms | 6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 8.1 Kinst/ms 100 % Boolean |
| Number Of Slave | 63 CANopen |
| Memory Description | internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Mercury Free | Yes |
|---|---|
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Environment
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Product Certifications | CE || UL || CSA || RCM || EAC || Merchant Navy |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility |
| Protective Treatment | TC |
| Standards | EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G |
|---|---|
| Environmental Characteristic | hazardous location class I division 2 |
| Relative Humidity | 10-95 % without condensation |
| Ip Degree Of Protection | IP20 |
