Telemecanique Sensors XZBWR2STT24 Programmable receiver, 4 PNP, 200 mA, 24 V DC, 2 pusbuttons, 6 LEDs
Telemecanique Sensors XZBWR2STT24 Programmable receiver, 4 PNP, 200 mA, 24 V DC, 2 pusbuttons, 6 LEDs
- MPN: XZBWR2STT24
- PPN: TES-XZBWR2STT24
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$624.43/ EA
Description

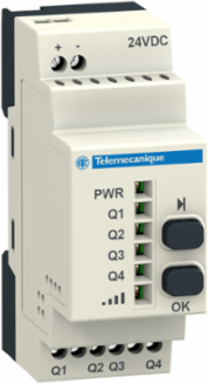

This product is part of the XC Standard range, an offer of limit switches. This programmable receiver is equipped with 2 buttons and 6 LED indicators (power ON, reception signal and output active). It has 4 PNP output contacts and has 2.4GHz ZigBee green power communication port protocol. It is available with 1A fuse type fast blow short-circuit protection. It is a programmable receiver with nominal output current of 0.8A at 24V DC, maximum switching current of 200mA DC, rated supply voltage of 24V DC and maximum power consumption of 26W DC. Receiver unit has 2 channels per receiver. It supports 35mm symmetrical DIN rail mount conforming to EN/IEC 60715, mounting plate. It is an IP20 rated product. The programmable receiver is made of self-extinguishing plastic. Its dimensions are 36mm (Width) x 75mm (Depth) x 108mm (Height) and weighs 0.13kg. It is used for interface to PLC applications. This product is certified by CE. It meets EN/IEC 60947-5-1 and EN/IEC 60947-1 standards. It is compatible with radio transmitter XZBWE112A24. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges.
Specifications
Complementary
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- Height
- 108 mm
- Short-Circuit Protection
- 1 A fuse fast blow
- Status Led
- 1 LED green power ON || 1 LED green and yellow reception signal || 4 LEDs green output active
- Electrical Connection
- 1 conductor cable 0.14-2.5 mm² AWG 26...AWG 14 solid without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² AWG 26...AWG 16 solid without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm² AWG 26...AWG 12 flexible with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² AWG 26...AWG 16 flexible with cable end IEC 60947-1
- Response Time
- < 30 ms after sensor change
- Operating Position
- any position without derating
- Utilisation Category
- DC-13 EN/IEC 60947-5-1
- Maximum Voltage Drop
- <2 V 200 mA)
- Nominal Output Current
- 0.8 A 24 V DC
- Maximum Sensing Distance
- 100 m in free field || 25 m in a metal enclosure
- Maximum Number Of Transceivers
- ZigBee <2
- Housing Material
- self-extinguishing plastic
- Width
- 36 mm
- Depth
- 75 mm
- Maximum Power Consumption In W
- 26 W DC
Minimum Switching Current10 mA
Maximum Switching Current200 mA DC
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Output Contacts4 PNP
Communication Port ProtocolZigbee green power 2.4 GHz
MarkingCE
Starting Time<= 400 ms
Net Weight0.13 kg
Time Delay Range0.5 s - 15...15 %)
Rated Short-Duration Power Frequency Withstand Voltage1 kV 50 Hz EN/IEC 60947-5-1
Breaking Capacity4.8 W per output)
Mounting Support35 mm symmetrical DIN rail EN/IEC 60715 || mounting plate
Function Of Modulereceiver unit for remote sensor
Output Typetransistor PNP
Tightening Torque0.5-1 N.m EN/IEC 60947-1
Number Of Channels2 per receiver
Environment
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-1
- Vibration Resistance
- +/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529 casing) || IP20 IEC 60529 terminals)
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 90-90 % -20-55 °C, without condensation ETSI EN 300 328
Shock Resistance10 gn 16 ms) 6000 shocks IEC 60068-2-27
Insulation Resistance> 500 MOhm 500 V DC NF C 20-030
Electromagnetic Compatibilityimmunity for industrial environments EN/IEC 61000-6-2 || conducted emission ETSI EN 301 489-17 || radiated emission ETSI EN 300 328 || electrical fast transient/burst immunity test 1 kV PNP output wires IEC 61000-4-4 || 1.2/50 µs shock waves immunity test 0.5 kV differential mode IEC 61000-4-5 || 1.2/50 µs shock waves immunity test 1 kV common mode IEC 61000-4-5 || immunity to microbreaks and voltage drops 7 ms IEC 61000-4-11 || conducted and radiated emissions class B CISPR 22 || electrostatic discharge immunity test 8 kV in free air (in insulating parts) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV on contact (on metal parts) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m, 80 MHz...1 GHz at 3 m IEC 61000-4-3 || susceptibility to electromagnetic fields 3 V/m, 1.4 MHz…2 GHz at 3 m IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power supply wires IEC 61000-4-4 || conducted RF disturbances 10 V IEC 61000-4-6 || radiated emission ETSI EN 301 489-17
Surge Withstand0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Overvoltage CategoryIII IEC 60664-1
[Ui] Rated Insulation Voltage60 V IEC 60664-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Product Or Component Type
- programmable receiver
- Device Application
- interface to PLC
Product Compatibilityradio transmitter XZBWE
