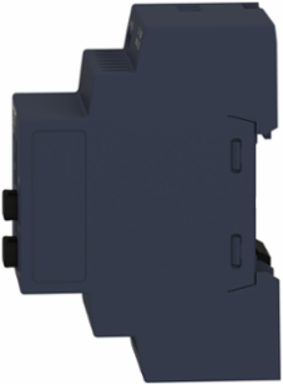

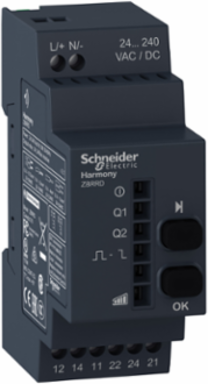

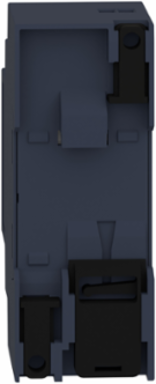

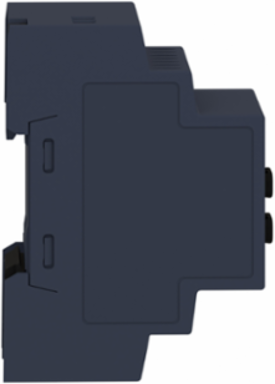

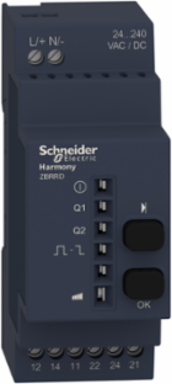

Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width
Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width
Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width
Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width
Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width
Schneider Electric

Schneider Electric ZBRRD Programmable Receiver 24-240V AC/DC, 2 Relays, 36 mm Width

  • MPN: ZBRRD
  • PPN: SCH-ZBRRD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $278.92

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, United States
    Depth75 mm

    Communications & Management Attributes

    Communication Port Protocol
    Zigbee green power 2.4 GHz IEEE 802.15.4

    Complementary Attributes

    Control Circuit Frequency
    50...60 Hz +/- 10 %
    Maximum Switching Current
    5 mA AC/DC
    Maximum Sensing Distance100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
    Maximum Switching Voltage250 V AC/DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Connection
    2 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - flexible - with cable end IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - 26 AWG...14 AWG - solid - without cable end IEC 60947-12 conductors cable 0.14-1.5 mm² - 26 AWG...16 AWG - solid - without cable end IEC 60947-1, 1 conductor cable 0.14-4 mm² - 26 AWG...12 AWG - flexible - with cable end IEC 60947-1
    Function Of Module
    bi-stable, monostable
    Mounting Support
    35 mm symmetrical DIN rail conforming to IEC 60715, mounting plate
    Response Time
    < 30 ms after transmitter clicks, < 30 ms after transmitter clicks< 30 ms after transmitter clicks, < 30 ms after transmitter clicks
    Utilisation Category
    AC-15 : B300 IEC 60947-5-1, DC-12 IEC 60947-5-1
    Certificate Agency
    CCC, UL, GOST, CSA, C-tick
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.068919776
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.2609152
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Antenna Type
    omnidirectional
    Electrical Durability
    100000 cycles
    Level Or Class
    5M00G7W
    Max Power Consumption In W
    1 mW
    Modulation Technique
    O-QPSK
    Operating Position
    any position without derating
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    interface to actuators
    Reset Time
    2 ms time delay
    Shock Resistance
    10 gn 16 ms) 6000 shocks IEC 60068-2-27
    Sustainable Packaging
    No
    Tightening Torque
    0.5-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint
    32 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    Energy Consumption On Product Lifetime In Kwh
    52.5746
    Energy Model - Installation [A5]
    Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; AC; < 1kV; EU-27
    Width Nominal
    36 mm
    [Uimp] Rated Impulse Withstand Voltage
    4 kV
    Rated Short-duration Power Frequency Withstand Voltage
    1.5 kV 50 Hz IEC 60947-5-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Water Pollution (M3) Manufacturing [A1-a3]
    195.04
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electromagnetic Compatibilityimmunity for industrial environments conforming to IEC 61000-6-2, conducted and radiated emissions class B conforming to CISPR 22electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-41.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11radiated emission conforming to ETSI EN 300 440-1conducted emission conforming to EN 300-489-1, conducted emission conforming to ETSI EN 300 489-3, radiated emission conforming to ETSI EN 300 440-2
    Insulation Resistance> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030> 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030, > 500 MOhm 500 V DC NF C 20-030
    Radio AgreementRSS, SRRC, ANATEL, ARIB T66, FCC, ICASA
    Status Led1 LED Green power ON2 LEDs Green relay ON, 2 LEDs Green function mode1 LED green and yellow reception signal
    Vibration Resistance+/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-62 gn (f= 8-150 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]0.021773088, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0036820608, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]31 kg CO2 eq., 31.0418797733
    Local Publishable Date2026-05-07
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2303007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Antenna Gain0 dBi
    Device Short NameZBRRD
    Housing Materialpolycarbonate
    MarkingCE
    Mechanical Durability1000000 cycles
    Number Of Channels1
    Overvoltage CategoryII conforming to IEC 60664-1
    Product Or Component Typeprogrammable receiver
    Range Of ProductHarmony
    ReturnabilityYes
    Software VersionEIME v5.8.1
    Switching Capacity In Va1250 VA
    Time Delay Range0.5 s - 15...15 %)
    Transmission Frequency2405 MHz
    Pep CodeENVPEP2303007EN
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
    Height Nominal108 mm
    [Ui] Rated Insulation Voltage250 V IEC 60664-1
    [Us] Rated Supply Voltage24...240 V24...240 V AC/DC 50/60 Hz - 10...10 %
    Short-circuit Protection0.4 A fuse fast blow
    Package Weight(Lbs)138.0 g
    Warranty (In Months)18
    Customs Code8517620090

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    32.3971698981
    Environmental Disclosure
    ENVPEP2303007EN
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2303007EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Ip Degree Of ProtectionIP20 IEC 60529 casing), IP20 terminals)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Relative Humidity90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    programmable receiver
    Range Of ProductHarmony

    ETIM

    ETIM 8
    EC002024
    ETIM 9EC002024

    Output Attributes

    Nominal Output Current
    3 A 240 V AC UL 5083 A 240 V AC CSA C22.2 No 14, 0.3 A 48 V DC IEC 60947-5-1, 3 A 24 V DC UL 508, 1.5 A 240 V AC IEC 60947-5-1, 3 A 120 V AC IEC 60947-5-1, 3 A 24 V DC CSA C22.2 No 14
    Output Type
    2 relays
    Output Contacts2 C/O

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV differential mode IEC 61000-4-52 kV common mode IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Input Output Isolation
    galvanic isolation
