Tripp Lite TLP808TELTV 8-Outlet Surge Protector with 2160 Joules, 8-ft. Cord, RJ11 Protection
- MPN: TLP808TELTV
- UPC: 037332095343
- PPN: TRP-TLP808TELTV
CAD
$94.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

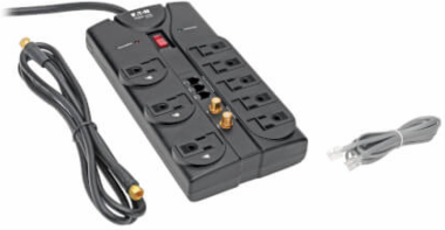

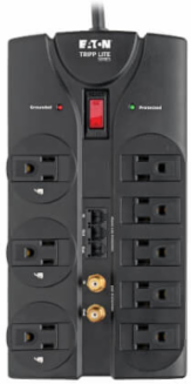

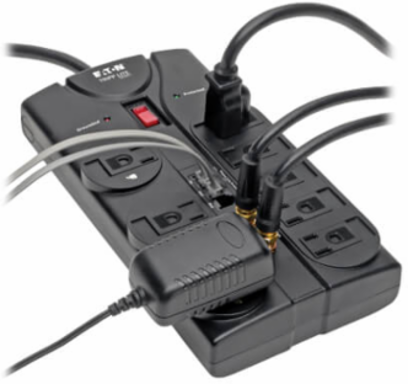

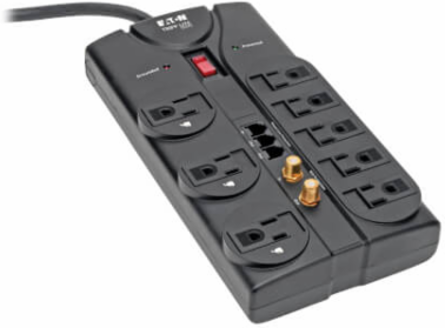

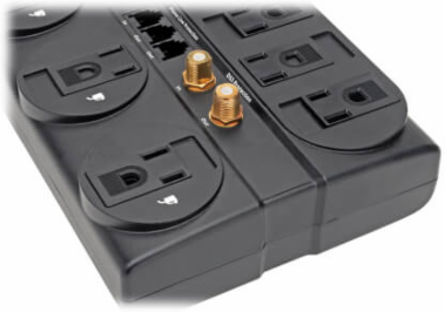

Protect It! 8-Outlet Surge Protector, 8 ft. (2.43 m) Cord, 2160 Joules, Tel/Fax/Modem/Coax Protection, RJ11
Features
- 6-ft. (1.83 m) telephone cord
- 6-ft. (1.83 m) gold coax cable
- Instruction manual with warranty information
Documentation & Downloads
Specifications
Additional
- Voltage
- 120V AC
- Maximum Surge Amps
- 144000 A
- Circuit Breaker
- 15 A
- Surge Response Time
- < 1 ns
- UL1449 Let Through Rating
- 330/400/400 V
- Automatic Shut-Off
- Yes
- Cable (Coax) Protection
- Yes, 1 line
- Outlets
- 8
- Input Plug Type

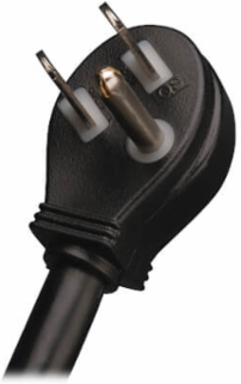

- NEMA 5-15P right-angle
- Unit Dimensions (H x W x D)
- 4.86 x 9.55 x 1.51 in
- Housing Color
- Dark Gray
- Receptacle Color
- Gray
- Outlet Orientation
- Single row of 5, plus a second row of 3 for transformer accommodation
- Audible Alarm
- Yes

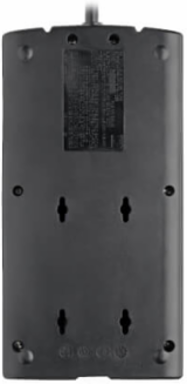

- Integrated Keyhole Mounting Slots
- Yes
- Outlets Measurement (Center to Center)
- Standard outlets: 28.5mm; Transformer outlets: 57mm
- UL497A (Communications)
- UL497A
- UL1363 (Power Tap)
- UL1363
- Industry Canada (Communications)
- Industry Canada
- Approvals
- Exceeds IEEE 587 category A & B specifications
- Color
- Black
- Connected Equipment Insurance
- $150,000 Ultimate Lifetime Insurance (U.S., Canada & Puerto Rico)
Frequency Compatibility50/60 Hz
Surge Suppression Rating2160 Joules
Output Wattage1800 W
Clamping Voltage150 V RMS
EMI/RFI FilteringUp to 40 dB
Telephone/DSL ProtectionYes, 1 line
Output Receptacles(8) 5-15R
Input Cord Gauge14 gauge, SJT
Cord Length8 ft
Unit Weight1.9 lbs
MaterialPlastic
SwitchesCombination AC circuit breaker and 2-position red illuminated on/off power switch
Diagnostic LEDYes, LEDs confirm protection (green) and grounded status (red)
Transformer Accommodation6 outlets
Keyhole Slot Mounting Measurement (Center to Center)Horizontal tabs: 75mm; Vertical tabs: 41.6mm
Automatic Shut-OffYes
UL1449 3rd Edition (AC Suppression)UL1449 3rd Edition
FCC Part 68 (Communications)FCC Part 68
cUL (Canada)cUL
Color (AC Line Cord)Black
UPC Code037332095343
Product Warranty PeriodLifetime limited warranty
