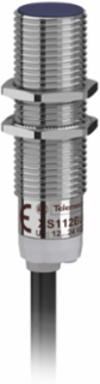

Telemecanique Sensors XS112B3PBL2 inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, cable 2 m
Telemecanique Sensors XS112B3PBL2 inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, cable 2 m
- MPN: XS112B3PBL2
- PPN: TES-XS112B3PBL2
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$116.45/ EA
Description
This XS cylindrical (M12 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. Nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is E2, CSA, UL certified.
Specifications
Environment
- Product Certifications
- E2 || UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.09 kg
- Thread Type
- M12 x 1
- Maximum Delay Recovery
- 0.2 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 3 x 0.34 mm²
Maximum Delay Response0.2 ms
Operating Zone0-3.2 mm
Threaded Length25 mm
Length37 mm
Switching Frequency<= 2500 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Wire Insulation MaterialPVC
Enclosure Materialnickel plated brass
Front MaterialPPS
Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- metal
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 4 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M12
- Device Application
- mobile equipment
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NC
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS1
Size37 mm
Ip Degree Of ProtectionIP65 IEC 60529 || IP67 IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA overload and short-circuit protection
Output Circuit TypeDC
