Mersen

Mersen H097228 PS

PS
  • MPN: H097228
  • PPN: FER-H097228

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1758.79/ EA

Description

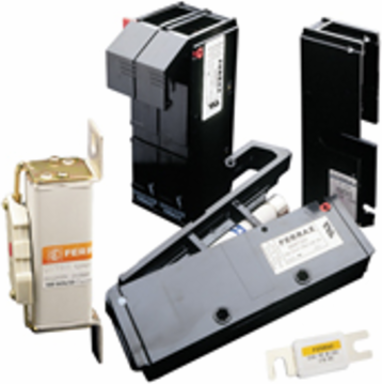

Mersen PS modular 1500V fuseholders offer the highest levels of safety and features for 20x127mm fuses. The PS range is available in 1, 2, 3 or 4-pole units, with or without blown-fuse indicating microswitches in each pole (striker fuse required)

Features

  • Phenolic resin models for basic applications, fiber-glass polyester for applications in corrosive atmospheres or applications for traction
  • Solid assembly offers good thermal and mechanical withstand rating
  • Fuse mounting in holders or no-load disconnectors with or without open fuse indicating Microswitches

Specifications

Product Details

ROHS Compliant
Consult Technical Services
Mounting
Screw Mount
Wiring Range
50mm2 max
Materials Contact
Tin-plated Copper
Connection Terminal Type
Bolt-in
Ampere Range
0-125 A
Number of Poles
1-4
Lead Free
Consult Technical Services
CE conformityConsult Technical Services
AC Voltage Range1500 - 2500 VAC
UL CertificationE113357 IZLT2.E113357
DC Voltage Range1500 - 2500 VDC
Body MaterialPhenolic
SCCR42kA AC 55kA DC kA
StandardsUL Recognized Component to standard 4248-1, File E113357
