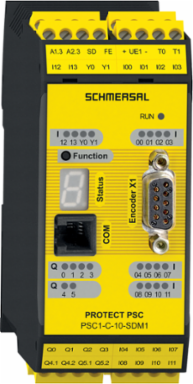

Schmersal 103008443 Safety Controller PSC1-C-10-SDM1, 14 Inputs, 2 Outputs, 24 VDC
- MPN: 103008443
- PPN: SCM-103008443
CAD
$1894.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety Controller PSC1-C-10-SDM1, 14 Inputs, 2 Outputs, 24 VDC
Features
- Safe drive monitoring according to EN 61800-5-2 (SDM – Safe Drive Monitoring) for 1 axis
- Modular expansion with up to 64 inputs / outputs
- 4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p- / n-switching semiconductor outputs
- 14 safe inputs on the base module
- 2 Signalling outputs
- 2 safety relay contacts
Documentation & Downloads
Specifications
Key Specifications
| Width | 45 mm |
|---|---|
| Depth | 115 mm |
| Height | 100 mm |
|---|
Electrical data
| Operating voltage | 24 VDC -15 % / +20 % |
|---|
| Rated operating voltage | 24 VDC |
|---|
Mechanical data - Dimensions
| Width | 45 mm |
|---|---|
| Depth | 115 mm |
| Height | 100 mm |
|---|
Ambient conditions - Insulation values
| Overvoltage category | III |
|---|
| Degree of pollution | 2 |
|---|
Scope of delivery
| Scope of delivery | Backplane bus connector | Connector terminals |
|---|
Electrical data - Spindle monitoring
| Number of axis monitoring, max. | 1 |
|---|
| Drive monitoring, encoder typ | TTL | SINCOS | Proximity switch |
|---|
General data - Features
| Number of pulse outputs (test pulse output) | 2 |
|---|---|
| Number of digital fail-safe inputs | 14 |
| Number of signalling outputs | 2 |
| Number of relay outputs (1-channel) | 2 |
|---|---|
| Number of fail-safe digital outputs | 4 |
| Anzahl der Erweiterungsbaugruppen, maximal | 2 |
General data
| Terminal (mechanical) | Removable screw terminals |
|---|
| Gross weight | 480 g |
|---|
Safety classification
| Performance Level, up to | e |
|---|---|
| PFH value | 1.26 x 10⁻⁸ /h |
| Mission time | 20 Year(s) |
| Category | 4 |
|---|---|
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - Safety digital outputs
| Rated operating current (safety outputs) | 2,000 mA |
|---|
| Design of control elements | short-circuit proof, p-type (Q2 und Q3) |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 5 % |
| Note (Relative humidity) | non-condensing |
| Ambient temperature | +0 ... +50 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Relative humidity, maximum | 85 % |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Mechanical data - Connection technique
| Cable section, minimum | 0.2 mm² |
|---|---|
| Wire cross-section, minimum | 24 AWG |
| Wire cross-section | 24 ... 12 AWG |
| Cable section, maximum | 2.5 mm² |
|---|---|
| Wire cross-section, maximum | 12 AWG |
Electrical data - Safe relay outputs
| Voltage, Utilisation category AC-15 | 230 VAC |
|---|---|
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category AC-15 | 2 A |
|---|---|
| Current, Utilisation category DC-13 | 2 A |
Mechanical data
| Mounting | can be clipped into standard rail |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Electromagnetic compatibility | DIN EN 62061 | DIN EN 61800-3 |
|---|---|
| EMC rating | DIN EN 61000-6-7 | DIN EN 61326-3 | DIN EN 61000-6-2 |
| Interfering radiation | DIN EN 61000-6-4 |
|---|
