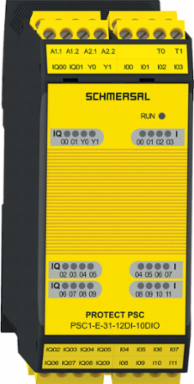

Schmersal 103012195 Safety Controller PSC1-E with 10 Digital Inputs & Outputs, 100 mm Height, IP20

MPN: 103012195
PPN: SCM-103012195

$1522.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety Controller PSC1-E with 10 Digital Inputs & Outputs, 100 mm Height, IP20

Documentation & Downloads

Specifications

Key Specifications

Width	45 mm
Depth	115 mm

Height	100 mm

Electrical data

Operating voltage	24 VDC -15 % / +20 %

Rated operating voltage	24 VDC

Mechanical data - Dimensions

Width	45 mm
Depth	115 mm

Height	100 mm

Ambient conditions - Insulation values

Overvoltage category	III

Degree of pollution	2

Scope of delivery

Scope of delivery	Backplane bus connector \| Connector terminals

General data - Features

Number of digital fail-safe inputs	10
Number of signalling outputs	2

Number of digital fail-safe in-/outputs	10

General data

Terminal (mechanical)	Removable screw terminals

Gross weight	400 g

Safety classification

Performance Level, up to	e
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
Mission time	20 Year(s)

Electrical data - Safety digital outputs

Rated operating current (safety outputs)	2,000 mA

Ambient conditions

Degree of protection	IP20
Storage and transport temperature, minimum	-25 °C
Relative humidity, minimum	5 %
Note (Relative humidity)	non-condensing

Ambient temperature	+0 ... +50 °C
Storage and transport temperature, maximum	+70 °C
Relative humidity, maximum	85 %
Permissible installation altitude above sea level, maximum	2,000 m
