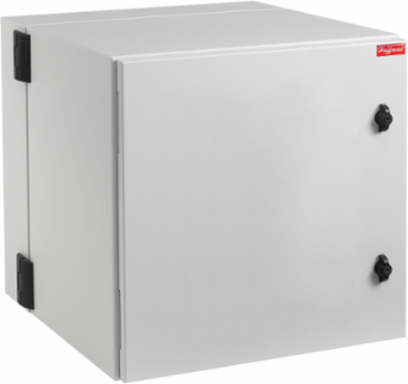

Nvent Hoffman PTHS242436G4 ProTek Double-Hinge Solid Type 4 12, 24.09x23.62x36.02, LtGray, Steel
Nvent Hoffman PTHS242436G4 ProTek Double-Hinge Solid Type 4 12, 24.09x23.62x36.02, LtGray, Steel
- MPN: PTHS242436G4
- UPC: 783510291075
- PPN: HOF-PTHS242436G4
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3444.00/ EA
Description
ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Solid Type 4 12, PTHS242436G4 item measures 24.09x23.62x36.02in. with a material of Steel colored LtGray.
Features
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.9
- Rack Units
- 12
- IP Rating
- IP66
- Sub Brand
- ProTek
- Width
- 23.62 in
- Material
- SS Type 304
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)612
Depth (D)915
Product FamilyProTek
Color CodeRAL 7035
Door Thickness1.52
Additional Rack AnglesPTRA24T or PTRA24S
Weight127
Height24.09 in
Depth36.02 in
ColorRAL 7035 Gray
