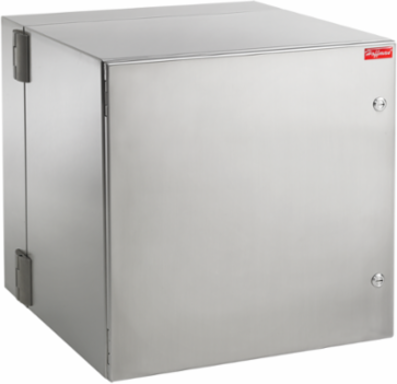

Nvent Hoffman PTHS362415X ProTek Double-Hinge Solid Type 4 4X 12, 36.30x23.62x14.96, Brushed, SS304
Nvent Hoffman PTHS362415X ProTek Double-Hinge Solid Type 4 4X 12, 36.30x23.62x14.96, Brushed, SS304
- MPN: PTHS362415X
- UPC: 783510240653
- PPN: HOF-PTHS362415X
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Solid Type 4 4X 12, PTHS362415X item measures 36.30x23.62x14.96in. with a material of SS304 Finish Brushed.
Features
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- Door Thickness
- 1.52
- Additional Rack Angles
- PTRA36T or PTRA36S
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- ProTek
Height (H)922
Depth (D)380
Product FamilyProTek
Body Thickness1.9
Rack Units19
IP RatingIP66
Weight145
MaterialStainless Steel
