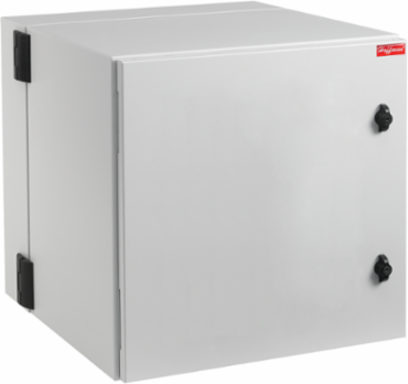

Nvent Hoffman PTHS602424G4 ProTek Double-Hinge Solid Type 4 12, 60.04x23.62x24.02, Lt Gray, Steel
Nvent Hoffman PTHS602424G4 ProTek Double-Hinge Solid Type 4 12, 60.04x23.62x24.02, Lt Gray, Steel
- MPN: PTHS602424G4
- UPC: 783510236250
- PPN: HOF-PTHS602424G4
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProTek Double-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Double-Hinge Solid Type 4 12, PTHS602424G4 item measures 60.04x23.62x24.02in. with a material of Steel colored Lt Gray.
Features
- Front and rear access to 19-inch rack equipment provided by three-part design: door, center section and wall section
- Solid door provides complete physical and visual protection
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Doors, center section and wall section are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob is included on painted steel cabinet, providing access control to the cabinet; two keys are included with each cabinet
- Stainless steel cabinet is provided with a quarter-turn slotted latch
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
- On 28-inch (700 mm) wide enclosures, a 4-inch vertical cable manager with composite fingers is provided on hinge side of cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 600
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Door Thickness
- 1.52
- Additional Rack Angles
- PTRA60T or PTRA60S
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- ProTek
- Finish
- Lt Gray
Height (H)1,525
Depth (D)610
Product FamilyProTek
Body Thickness1.9
Rack Units32
IP RatingIP66
Weight225
MaterialSteel
ColorLt Gray
