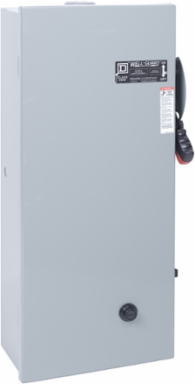

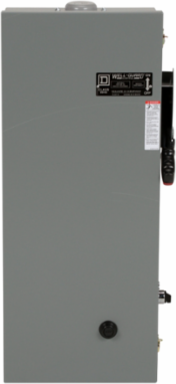

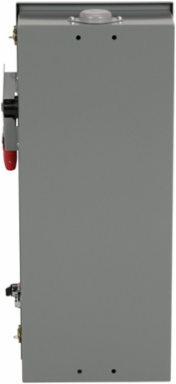

Square D 8940SSD2015 Well-Guard Pump Panel NEMA Type S, Size 2, 15HP, 45A, 220/240VAC
- MPN: 8940SSD2015
- UPC: 785901011774
- PPN: SCH-8940SSD2015
CAD
$4365.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Well-Guard Pump Panel NEMA Type S, Size 2, 15HP, 45A, 220/240VAC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth246 mm
Complementary Attributes
- Control Circuit
- common control circuit
- Maximum Horse Power Rating
- 15-15 hp 240 V AC, 3 phase
Line Rated Current45 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Certificate Agency
- UL Listed, NEMA
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 60 A
- Device Application
- pumping
- Disconnector Device Type
- fusible disconnect switch
- Enclosure Type
- weatherproof enclosure indoor/outdoor
- Fuse Type
- H or K
- Permissible Voltage
- 600 V AC
- Product Name
- Well-Guard Control
- Returnability
- Yes
- Thermal Overload Type
- Motor Logic solid state class 10/20
- Width Nominal
- 385 mm
- Package Weight(Lbs)
- 27.243 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
[Uc] Control Circuit Voltage240 V AC 60 Hz, 220 V AC 50 Hz
Local Publishable Date2026-03-25
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Circuitcommon control circuit
Device Short Nameclass 8940 type SS
Electrical Connectionscrew terminal
Energy Efficiency OptimizedFalse
Number Of Poles3
Product AvailabilityStock - Normally stocked in distribution facility
RangeSquare D
Sustainable PackagingNo
Height Nominal992 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Nema Size
- 2
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
