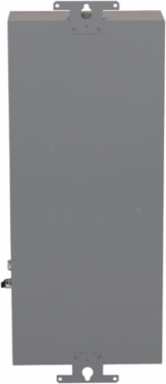

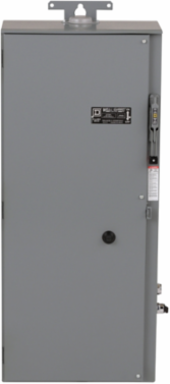

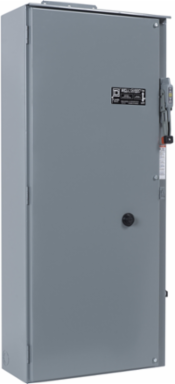

Square D 8940SSE2030 Pump Panel, NEMA Type S, Well Guard, Size 3, 90A, 5kA SSCR, 30HP, 100A Class H and K fuse clip, Motor Logic SSOLR, 240VAC 60Hz coil, NEMA 3R
Square D 8940SSE2030 Pump Panel, NEMA Type S, Well Guard, Size 3, 90A, 5kA SSCR, 30HP, 100A Class H and K fuse clip, Motor Logic SSOLR, 240VAC 60Hz coil, NEMA 3R
- MPN: 8940SSE2030
- UPC: 785901011804
- PPN: SCH-8940SSE2030
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Pump Panel, NEMA Type S, Well Guard, Size 3, 90A, 5kA SSCR, 30HP, 100A Class H and K fuse clip, Motor Logic SSOLR, 240VAC 60Hz coil, NEMA 3R
Specifications
Complementary Attributes
- Uc Control Circuit Voltage
- 240 V AC 60 Hz, 220 V AC 50 Hz
- Line Rated Current
- 90 A
Control Circuitcommon control circuit
Maximum Horse Power Rating30-30 hp 240 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Certificate Agency
- UL Listed, NEMA
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Circuit
- common control circuit
- Device Short Name
- class 8940 type SS
- Electrical Connection
- screw terminal
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- Square D
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Pn
- 1
- Width Nominal
- 522 mm
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating100 A
Device Applicationpumping
Disconnector Device Typefusible disconnect switch
Enclosure Typeweatherproof enclosure indoor/outdoor
Fuse TypeH or K
Permissible Voltage600 V AC
Product NameWell-Guard Control
ReturnabilityNo
Thermal Overload TypeMotor Logic solid state class 10/20
Offer Owner Code190788
Height Nominal1245 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Nema Size
- 3
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Mexico, United States
Depth263 mm
