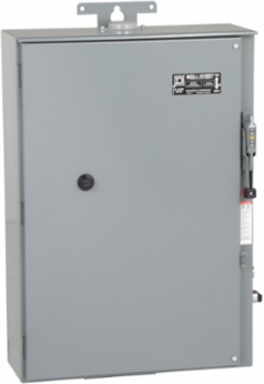

Square D 8940SSF4100L9 Well-Guard Pump Panel, NEMA Size 4, 100 HP, 135A, NEMA 3R

Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxiliary equipment. These panels use Type S non-reversing magnetic starters. Panel has a 200A fusible disconnect switch for Class H or K fuses. This panel has a 3 pole NEMA Size 4 non-reversing starter that has a 135 ampere rating. This NEMA Size 4 starter has maximum of 60 HP, 75 HP and 100 HP ratings three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 45A to 135A range to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. This short enclosure is 36.97 inches tall, 24.57 inches wide and 10.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
