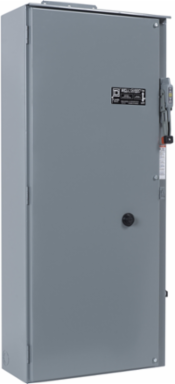

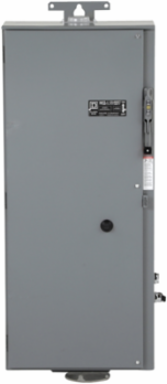

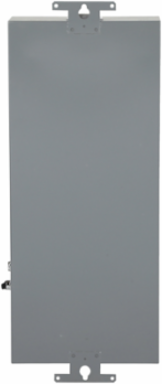

Square D 8940SSF4100V02S Well Guard Pump Panel NEMA Size 4, 135A, 100HP, 120V AC
Square D 8940SSF4100V02S Well Guard Pump Panel NEMA Size 4, 135A, 100HP, 120V AC
- MPN: 8940SSF4100V02S
- UPC: 785901147497
- PPN: SCH-8940SSF4100V02S
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 200A fusible disconnect switch. This NEMA Size 4 starter has a 100 HP at 480 VAC three phase rating and has a maximum rating of 135 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 110/240 VAC 50/60 Hz operating coil wired for separate control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 49.00 inches tall, 19.15 inches wide and 10.37 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
Features
- Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
- Pump panels are extremely customizable with other devices and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
- The starters in these panels are available with a wide variety of replaceable coil voltages
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, NEMA
Complementary Attributes
- Control Circuit
- separate control circuit
- Maximum Horse Power Rating
- 100-100 hp 480 V AC, 3 phase
Line Rated Current135 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Uc Control Circuit Voltage2
- 120 V AC 60 Hz, 110 V AC 50 Hz
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 200 A
- Device Application
- pumping
- Disconnector Device Type
- fusible disconnect switch
- Enclosure Type
- weatherproof enclosure indoor/outdoor
- Fuse Type
- H or K
- Permissible Voltage
- 600 V AC
- Range
- Square D
- Sustainable Packaging
- No
- Medium Desc
- Pump Panel, NEMA Type S, Well Guard, Size 4, 135A, 10kA SSCR, 100HP, 200A Class H and K fuse clip, Motor Logic SSOLR, 120VAC 60Hz coil, NEMA 3R
- Product Kit Identifier
- N
- Product Name
- Well-Guard Control
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
Uc Control Circuit Voltage5120 V AC 60 Hz, 110 V AC 50 Hz
Local Publishable Date2025-11-18
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Control Circuitseparate control circuit
Device Short Nameclass 8940 type SS
Electrical Connectionscrew terminal
Energy Efficiency OptimizedFalse
Package Weight Lbs66.678 kg
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Thermal Overload TypeMotor Logic solid state class 10/20
Stocking FlagN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Nema Degree Of Protection
- NEMA 3R
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Size4
Packaging Without Single Use PlasticYes
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 263 mm
