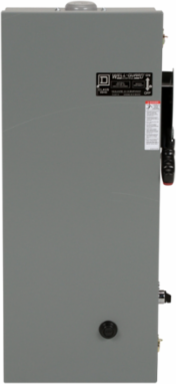

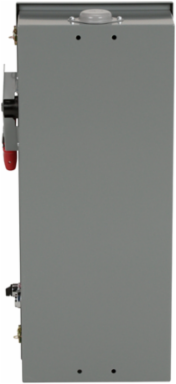

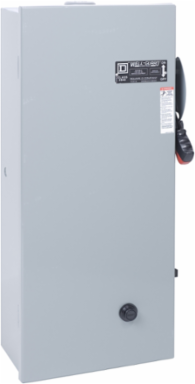

Square D 8940SSC4010V02S Well-Guard Pump Panel, NEMA Size 1, 27A, 10HP, NEMA 3R
- MPN: 8940SSC4010V02S
- UPC: 785901081968
- PPN: SCH-8940SSC4010V02S
CAD
$3525.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Well-Guard Pump Panel, NEMA Size 1, 27A, 10HP, NEMA 3R
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth246 mm
Complementary Attributes
- Control Circuit
- separate control circuit
- Maximum Horse Power Rating
- 10-10 hp 480 V AC, 3 phase
Line Rated Current27 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Certificate Agency
- UL Listed, NEMA
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Circuit
- separate control circuit
- Device Short Name
- class 8940 type SS
- Electrical Connection
- screw terminal
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Square D
- Sustainable Packaging
- No
- Height Nominal
- 992 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
[Uc] Control Circuit Voltage120 V AC 60 Hz, 110 V AC 50 Hz
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating30 A
Device Applicationpumping
Disconnector Device Typefusible disconnect switch
Enclosure Typeweatherproof enclosure indoor/outdoor
Fuse TypeH or K
Permissible Voltage600 V AC
Product NameWell-Guard Control
ReturnabilityYes
Thermal Overload TypeMotor Logic solid state class 10/20
Width Nominal385 mm
Package Weight(Lbs)27.216 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Nema Size
- 1
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
