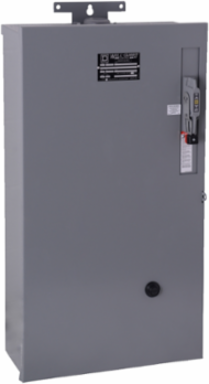

Square D 8940WC3S2V02H30S Well-Guard Pump Panel, NEMA Type S, 10HP, 27A, 30A Fuse, NEMA 3R
Square D 8940WC3S2V02H30S Well-Guard Pump Panel, NEMA Type S, 10HP, 27A, 30A Fuse, NEMA 3R
- MPN: 8940WC3S2V02H30S
- UPC: 785901950646
- PPN: SCH-8940WC3S2V02H30S
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Well-Guard Pump Panel, NEMA Type S, 10HP, 27A, 30A Fuse, NEMA 3R
Features
- Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
- Pump panels are extremely customizable with other devices and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, NEMA
Complementary Attributes
- Control Circuit
- separate control circuit
- Maximum Horse Power Rating
- 10-10 hp 480 V AC, 3 phase
Line Rated Current27 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Protection Type
- overload, phase loss, phase unbalance
- Uc Control Circuit Voltage5
- 120 V AC 60 Hz, 110 V AC 50 Hz
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Control Circuit
- separate control circuit
- Device Application
- pumping
- Disconnector Device Type
- fusible disconnect switch
- Enclosure Type
- weatherproof enclosure indoor/outdoor
- Fuse Type
- H or K
- Permissible Voltage
- 600 V AC
- Range
- Square D
- Sustainable Packaging
- No
- Medium Desc
- Pump Panel, NEMA Type S, Well Guard, oil field, Size 1, 27A, 10HP, 30A fusible disconnect, Motor Logic SSOLR, 110/120VAC 50/60Hz coil, NEMA 3R
- Product Kit Identifier
- N
- Product Name
- Well-Guard Control
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Uc Control Circuit Voltage2120 V AC 60 Hz, 110 V AC 50 Hz
Local Data StatusPublishable
Legacy WEEE ScopeIn
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Associated Fuse Rating30 A
Control Typeselector switch HAND-OFF-AUTO)
Device Short NameS2
Electrical Connectionscrew terminal
Energy Efficiency OptimizedFalse
Package Weight Lbs26.751 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Thermal Overload TypeMotor Logic solid state class 10/20
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Nema Degree Of Protection
- NEMA 3R
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Size1
Packaging Without Single Use PlasticYes
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
