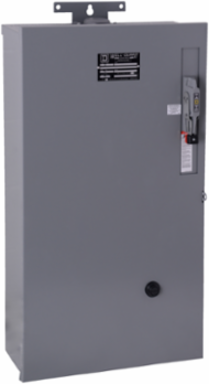

Square D 8940WC3S2V06Y61 Pump Panel, NEMA Type S, Well Guard, oil field, Size 1, 27A, 10HP, 30A fusible disconnect, melting alloy overload, 440/480VAC 50/60Hz coil, NEMA 3R

Pump Panel, NEMA Type S, Well Guard, oil field, Size 1, 27A, 10HP, 30A fusible disconnect, melting alloy overload, 440/480VAC 50/60Hz coil, NEMA 3R
  • MPN: 8940WC3S2V06Y61
  • UPC: 785901025818
  • PPN: SCH-8940WC3S2V06Y61

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3712.11/ EA

Description

Well-Guard pumping plant panels are designed for pumping applications. This panel is specifically designed for oil field applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch. This NEMA Size 1 starter has a 10 HP at 480 VAC three phase rating and has a maximum rating of 30 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.

Specifications

Environment

Product Certifications
UL listed || NEMA
Enclosure Type
rainproof enclosure indoor/outdoor
Nema Degree Of ProtectionNEMA 3R

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveNot compliant

Complementary

Thermal Overload Type
Motor Logic solid state class 10/20
Height
978 mm
Nema Size
1
Fuse Type
H or K
[Uc] Control Circuit Voltage
480 V AC 60 Hz || 440 V AC 50 Hz
[In] Rated Current
27 A
Control Circuit
common control circuit
Depth
239 mm
Associated Fuse Rating
30 A
Disconnector Device Typefusible disconnect switch
Control Typeselector switch HAND-OFF-AUTO)
Device Mountingsurface
Motor Power Hp10-10 hp 480 V AC, 3 phases
Electrical Connectionscrew terminal
Protection Typeoverload
Width519 mm
Permissible Voltage600 V AC
Number Of Poles3

Specifications

Product Name
Well-Guard Control
Device Short Name
S2
Device Applicationpumping
