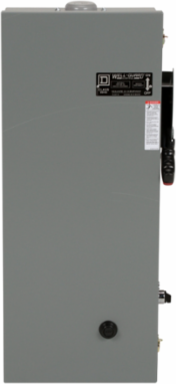

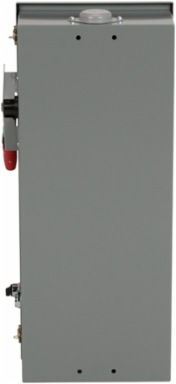

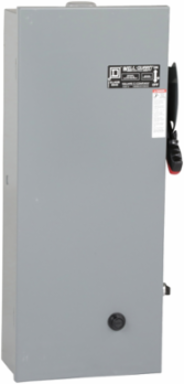

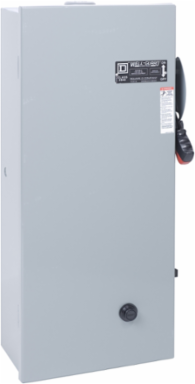

Square D 8940SSD4030 Well-Guard Pump Panel, Size 2, 30HP, 45A, NEMA 3R, 440/480VAC
Square D 8940SSD4030 Well-Guard Pump Panel, Size 2, 30HP, 45A, NEMA 3R, 440/480VAC
- MPN: 8940SSD4030
- UPC: 785901011767
- PPN: SCH-8940SSD4030
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Well-Guard Pump Panel, Size 2, 30HP, 45A, NEMA 3R, 440/480VAC
Features
- Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
- Pump panels are extremely customizable with other devices and accessories
- Robust design and reliable build for long mechanical life and electrical endurance
- Serviceable by replacing contacts and coils rather than replacing the entire product
- Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
- The starters in these panels are available with a wide variety of replaceable coil voltages
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, NEMA
Complementary Attributes
- Control Circuit
- common control circuit
- Maximum Horse Power Rating
- 30-30 hp 480 V AC, 3 phase
Line Rated Current45 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- selector switch HAND-OFF-AUTO), push-button START)
- Uc Control Circuit Voltage2
- 480 V AC 60 Hz, 440 V AC 50 Hz
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 60 A
- Device Application
- pumping
- Disconnector Device Type
- fusible disconnect switch
- Enclosure Type
- rainproof enclosure indoor/outdoor
- Fuse Type
- H or K
- Permissible Voltage
- 600 V AC
- Range
- Square D
- Sustainable Packaging
- No
- Medium Desc
- Pump Panel, NEMA Type S, Well Guard, Size 2, 45A, 5kA SCCR, 30HP, 60A Class H and K fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R
- Product Kit Identifier
- N
- Product Name
- Well-Guard Control
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Protection Typeoverload, phase loss, phase unbalance
Uc Control Circuit Voltage5480 V AC 60 Hz, 440 V AC 50 Hz
Local Publishable Date2025-11-18
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Control Circuitcommon control circuit
Device Short Nameclass 8940 type SS
Electrical Connectionscrew terminal
Energy Efficiency OptimizedFalse
Package Weight Lbs27.669 kg
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Thermal Overload TypeMotor Logic solid state class 10/20
Stocking FlagN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Nema Degree Of Protection
- NEMA 3R
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Nema Size2
Packaging Without Single Use PlasticYes
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 246 mm
