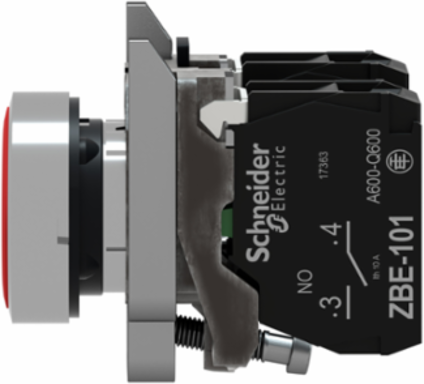

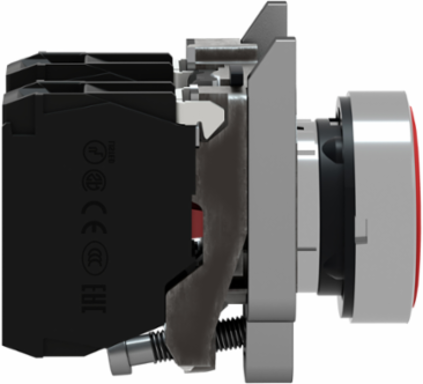

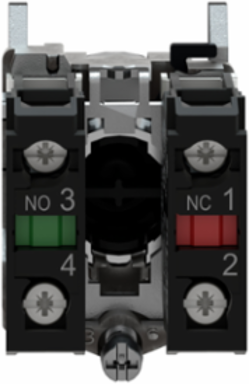

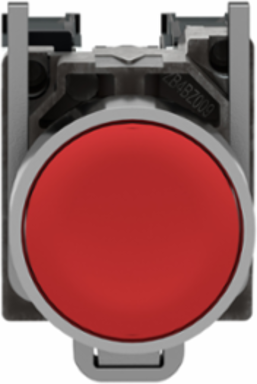

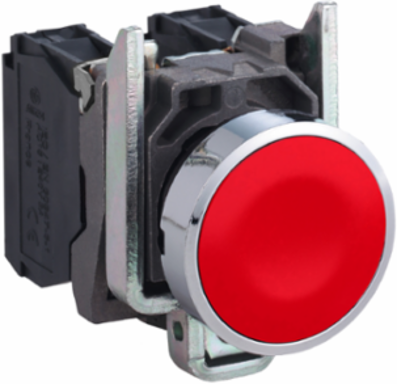

Schneider Electric XB4BA45 Harmony XB4 22mm Red Metal Push Button, Spring Return, IP66/IP67
- MPN: XB4BA45
- PPN: SCH-XB4BA45
CAD
$47.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This push-button provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)
Documentation & Downloads
Specifications
Key Specifications
- Mounting Diameter
- 22 mm
- Product Or Component Type
- push-button
- Fixing Collar Material
- zamak
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Device Short Name
- XB4
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Head Typestandard
Contacts Type And Composition1 NO + 1 NC
Bezel Materialchromium plated metal
Operator Profilered flush, unmarked
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1
- (13-14)NO
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Mechanical Durability
- 10000000 cycles
- Width
- 30 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Height47 mm
Operating Force3.8 N NO changing electrical state
Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwithout
Net Weight0.08 kg
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Depth52 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- GL || UL listed || CSA || LROS (Lloyds register of shipping) || DNV || BV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529
- Overvoltage Category
- class I IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
