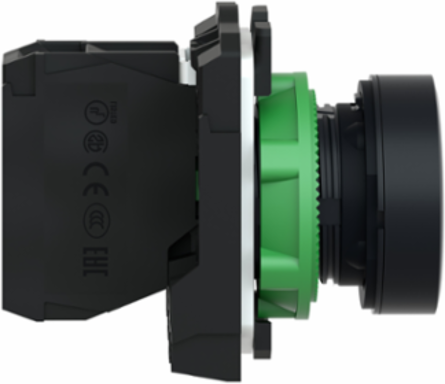

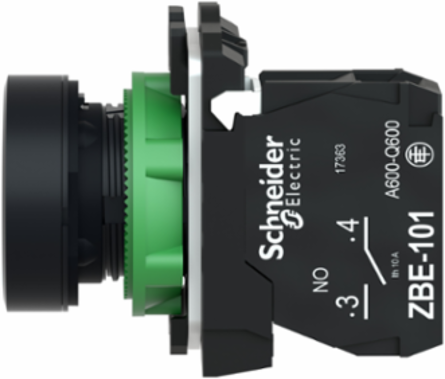

Schneider Electric XB5AA3341 Harmony XB5 White Push Button, 22mm, Spring Return, 1 NO
- MPN: XB5AA3341
- PPN: SCH-XB5AA3341
CAD
$43.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

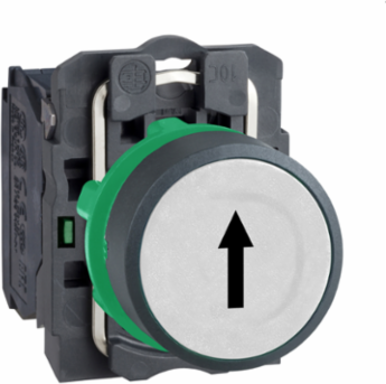

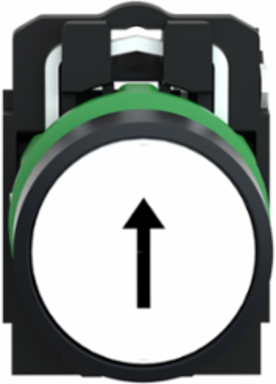

This Harmony XB5, modular white push button operates with a spring return / impulse mechanism and uses screw clamp terminals. It is marked with a "Up arrow" symbol. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- Designed for seamless integration, this Harmony XB5 component features a standard 22mm mounting diameter that directly retrofits into existing industry-standard industrial control panels and motor stations. The modular, compact round shape maximizes space layout optimization, allowing plant floor technicians to minimize overall panel footprint without overlapping adjacent operator interfaces.
- Engineered to withstand the harshest processing environments, this switch carries an extensive range of ingress ratings including IP66, IP67, IP69, and IP69K. It completely blocks out dust, oil, and aggressive water jets up to 7,000,000 Pa at 55 C, ensuring flawless long-term performance in food processing, packaging, and outdoor wastewater applications where rigorous cleaning is mandatory.
- Built for heavy-duty control circuit versatility, this unit has a thermal current rating up to 10A and reliably switches operational loads from 6A at 120VAC up to 0.55A at 125VDC.

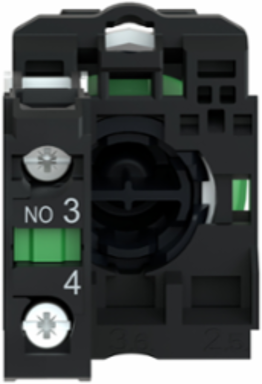

- Equipped with robust, universal screw clamp terminals, this assembly easily accepts solid or stranded field wiring up to 2 x 1.5 mm2 with cable ends or up to 2 x 2.5 mm2 without. The multi-slotted terminal screws are fully compatible with Philips No. 1, Pozidriv No. 1, and standard flathead screwdrivers, speeding up wiring processes during time-sensitive field repairs and retrofit maintenance windows.
- Constructed from premium, impact-resistant dark grey plastic, this momentary switch is rated for an extraordinary mechanical life of 10,000,000 cycles and an electrical life of 1,000,000 cycles. Fully backed by international certifications including CSA, UL, CE, BV, and DNV, it satisfies rigorous facility safety audits and guarantees predictable, long-term durability in high-vibration manufacturing environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Contacts Type And Composition
- 1 NO
- Bezel Material
- plastic || dark grey plastic
- Operator Profile
- white flush, up arrow black)
Mounting Diameter22 mm
Product Or Component Typepush-button
Fixing Collar Materialplastic
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity1
Contact Operationslow-break
Device Short NameXB5
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1
- (13-14)NO
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Net Weight
- 0.037 kg
- Device Presentation
- complete product
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Electrical Durability
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Compatibility Code
- XB5
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Depth
- 52 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height42 mm
Operating Force3.8 N NO changing electrical state
Operating Travel2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwithout
Customizable0
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability10000000 cycles
Customizableno
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- CSA || RINA || GL || LROS (Lloyds register of shipping) || BV || DNV || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsJIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
