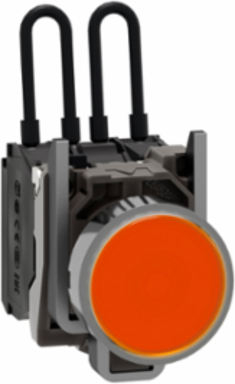

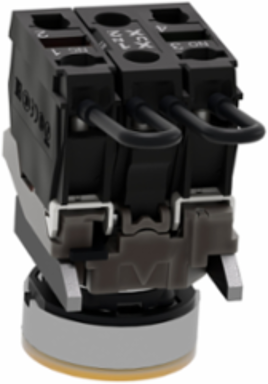

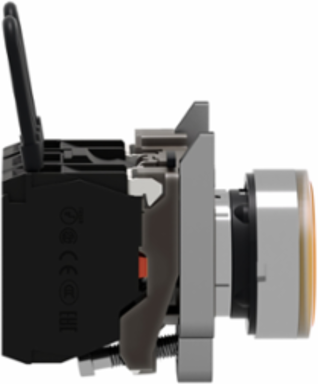

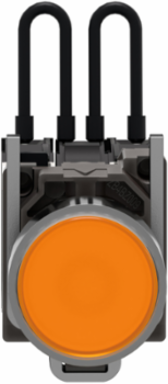

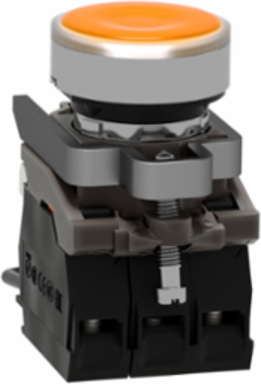

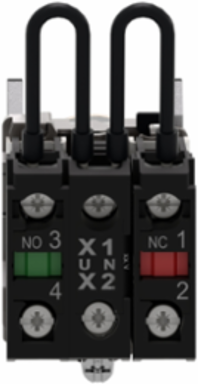

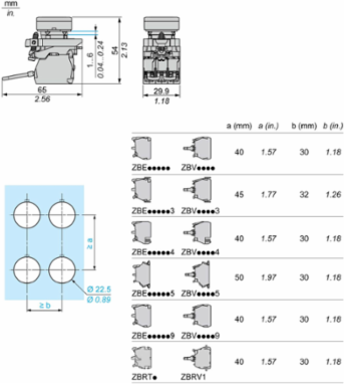

Schneider Electric XB4BW25B5 Harmony XB4 Push-to-Test Pilot Light, 24V, 22 mm, Metal, Orange
- MPN: XB4BW25B5
- PPN: SCH-XB4BW25B5
CAD
$58.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 plain lens push to test modular orange pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Depth55 mm
Physical Attributes
- Embedding Depth
- 43 mm
Light Source Colororange
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Certificate Agency
- CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60068-2-27, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60068-2-27
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1808008EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Compatibility Code
- XB4
- Device Short Name
- XB4
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mounting Diameter
- 22.5 mm
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Service Life
- 1.5 year(s)
- Signalling Type
- steady
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1808008EN
- Width Nominal
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-6, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-6
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content17 %
Bezel Materialmetal
Current Consumption18 mA
Fixing Collar Materialmetal
Light Sourceuniversal LED
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typepush-to-test pilot light
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Light Source Colororange
Height Nominal42 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourorange
Package Weight(Lbs)100.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60536, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1808008EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13 IEC 60529, NEMA 4X
Recycled Metal Content At Cr Level17 %
Mercury FreeYes
Environmental DisclosureENVPEP1808008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- push-to-test pilot light
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000272
ETIM 9EC000272
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV
