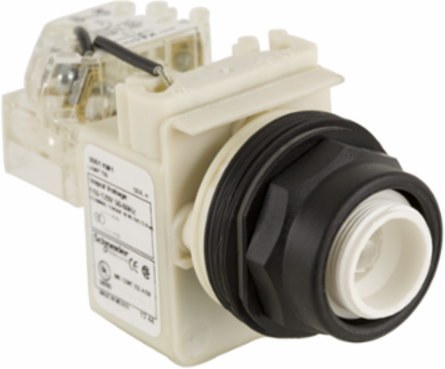

Schneider Electric 9001SKT1 Harmony 9001SK Push-to-Test Pilot Light Head, 30 mm, 110-120V AC, IP66
- MPN: 9001SKT1
- UPC: 785901513582
- PPN: SCH-9001SKT1
CAD
$240.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with push to test operator. It is supplied via internal transformer with 110V to 120V AC. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- head for push-to-test pilot light
Light Block Supplyvia transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- Bezel Material
- plastic
- Mounting Diameter
- 30 mm
- Operating Mode
- push-to-test
- Cap/Operator Or Lens Colour
- without cap
- Supply Frequency
- 50...60 Hz
Contacts Type And Composition1 C/O
Light Sourceincandescent bulb
Light Block Supplyvia integral transformer
Shape Of Signaling Unit Headround
Size30 mm
Bulb BaseBA 9s
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121111EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121107EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Protective Treatment
- TC
Ip Degree Of ProtectionIP66
