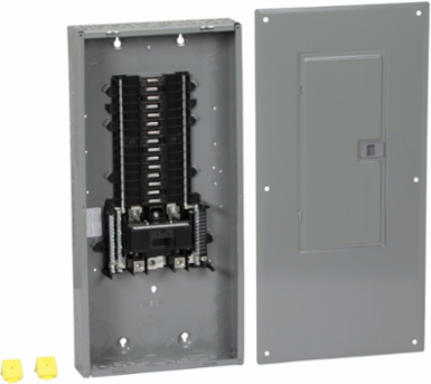

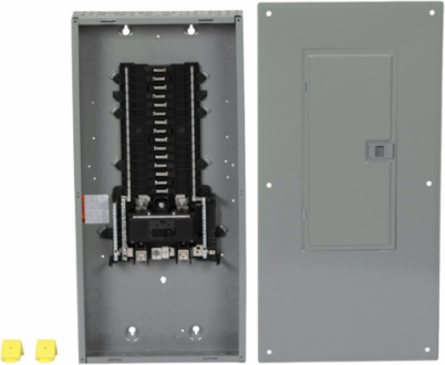

Square D QO130M150PC QO Load Center 1 Phase 30 Spaces 30 Circuits 150A Convertible Main Breaker
- MPN: QO130M150PC
- UPC: 785901960171
- PPN: SCH-QO130M150PC
CAD
$1565.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 150 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 4.4955770144, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0538190012, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Box Number
- 9
- Device Composition
- grounding bar (ordered separately)
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated copper: busbar
- Number Of Spaces
- 30
- Phase
- 1 phase 3 wires
- Product Or Component Type
- Load Center
- Returnability
- Yes
- Surface Finish
- baked enamel Gray
- Tightening Torque
- Cover 20 lb.in
- Pep Code
- ENVPEP2212003EN
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US

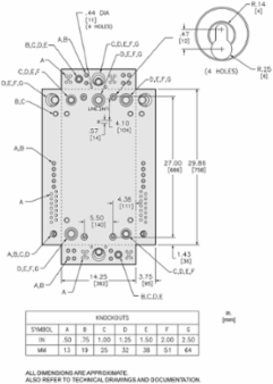

- Height Nominal
- 758 mm
- Certificate Agency
- UL Listed
- Short-circuit Current
- 22 kA
- Package Weight(Lbs)
- 13.254 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.0634
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.1758
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.2425136914
Carbon Footprint Of The Manufacturing Phase [A1 To A3]67 kg CO2 eq., 66.5282267333
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationResidential
Awg Gauge4 AWG...250 kcmil aluminium/copper

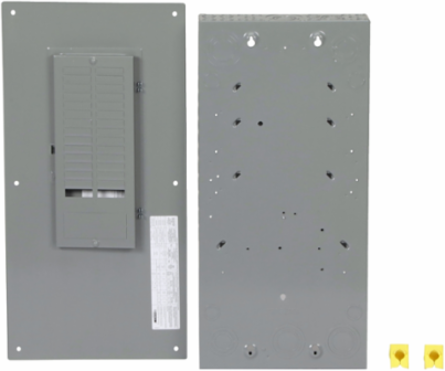

Cover Typecombination flush/surface cover
Electrical Connectionlugs
Energy Efficiency OptimizedFalse

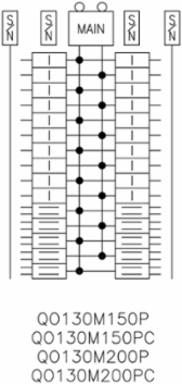

Load Center TypePoN Convertible Mains (breaker)
Number Of Circuits40
Number Of Tandem Circuit Breakers10
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint72 kg CO2 eq.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Tlaxcala Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %89
Width Nominal362 mm
[Ue] Rated Operational Voltage120/240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052
Customs Code8538100000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212003EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint72.4074774403
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
