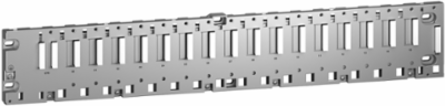

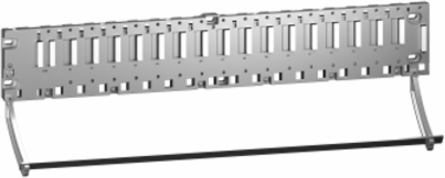

Schneider Electric BMXXBP1600 Backplane, Modicon X80, 16 slots, panel, mounting plate mounted
- MPN: BMXXBP1600
- PPN: SCH-BMXXBP1600
CAD
$1110.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This backplane is part of the Modicon X80 range, a common platform of modules for Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC). This X-bus backplane is an accessory for programmable automation controllers. This X-bus backplane is composed of 16 X-bus slots for X-bus modules only and has a power consumption of 0.17W. This backplane supports a large choice of modules and can be extended thanks to its XBE slot. This product can operate in a standard temperature range, from 0°C to +60°C. This backplane has a current of 51mA at 3.3V DC. It is furnished with 1 connector (XBE) for expansion module. It is an IP20 rated product. The backplane has a weigh of 1.594kg. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane is compatible with X80 power supply, M340 or M580 processor, and Modicon X80 modules. Modicon X80 range offers common compatible modules that reduce maintenance and training costs with the same spare parts in stock and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Philippines, United States
Depth19 mm
Important Information Attributes
- Fixing Mode
- by 6 M5/M6 screws panel, by 6 M5/M6 screws mounting plate
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2097559091, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0154947064, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 9.1137520129
- Local Publishable Date
- 2026-02-19
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2203018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2407
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Electrical Connection
- 1 connector (XBE) expansion module
- Power Consumption In W
- 0.17 W
- Product Or Component Type
- backplane
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2203018EN
- Pep Verification Date
- 2022-04-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 14.892
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Width Nominal
- 634.6 mm
- Package Weight(Lbs)
- 1.912 kg
- Warranty (In Months)
- 18
Certificate AgencyCE, cULus, RCM, UKCA, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.5936593371
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 15.4931969697
Local Data StatusPublishable
Pre Comm Date2024-02-21
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Number Of Slots16 bus X
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon X80
Software VersionEIME v5.9.3
Total Lifecycle Carbon Footprint25 kg CO2 eq.
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y15
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Height Nominal108 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2203018EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2022-04-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityBMXP34 processor, BMXCPS power supply, I/O module, specific application module
Recycled Metal Content At Cr Level0 %
Carbon Footprint25.4258589352
Circularity ProfileENVEOLI2203018EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2203018EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- backplane
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000810
ETIM 9EC000810
