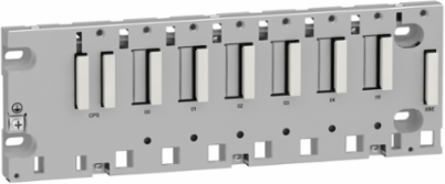

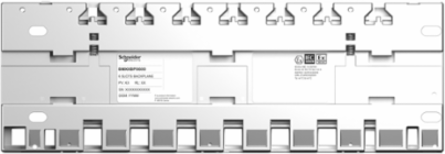

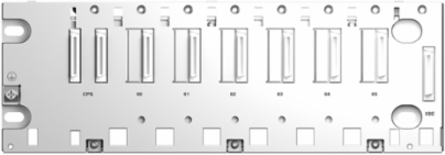

Schneider Electric BMXXBP0600 Modicon X80 Backplane, 6 Slots, IP20, 0.79 kg

MPN: BMXXBP0600
PPN: SCH-BMXXBP0600

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$339.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 6 bus X slots. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a power of 1.5W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.79kg. It is suitable for medium to large process applications. This Ethernet backplane rack is compatible with BMXP34 processor, I/O module, specific application module and BMXCPS power supply. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	19 mm

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Fixing Mode	by 4 M4/M5/M6 screws panel, by 4 M4/M5/M6 screws mounting plateby clips 35 mm symmetrical DIN rail
Carbon Footprint Of The Distribution Phase [A4]	0.1102731818, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0081458996, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	72 kg CO2 eq., 72.3739130435
Local Publishable Date	2026-04-24
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Slots	6 bus X
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon X80
Software Version	EIME v5.9.3
Total Lifecycle Carbon Footprint	81 kg CO2 eq.
Database Version	2020-12
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	118.26
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Width Nominal	307.6 mm
Package Weight(Lbs)	835.000 g
Warranty (In Months)	18
Water Pollution (M3) Operational Energy Use [B6]	3610

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Certificate Agency	CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.3120994508
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	8 kg CO2 eq., 8.1451060606
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2203018EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2007
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Electrical Connection	1 connector (XBE) expansion module
Power Consumption In W	1.68 W
Product Or Component Type	backplane
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2203018EN
Pep Verification Date	2022-04-01
Psr Version	nan
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	15
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Height Nominal	103.7 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	1008.5
Customs Code	8536908585

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take Back	No
China Rohs Regulation	X
Carbon Footprint	80.9495376363
Circularity Profile	ENVEOLI2203018EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2203018EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Product Compatibility	BMXP34 processor, BMXCPS power supply, I/O module, specific application module
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2203018EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Relative Humidity	10-95 % without condensation
Pep Verification Date	2022-04-01
Psr Version	nan
