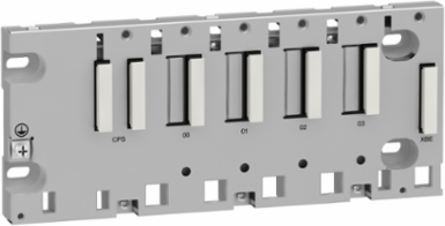

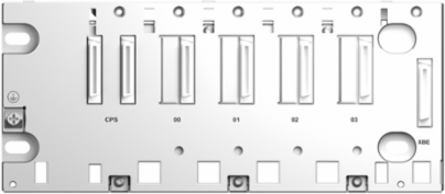

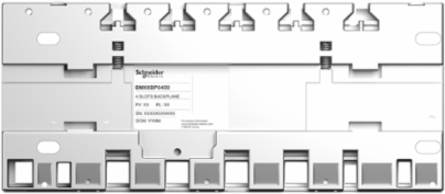

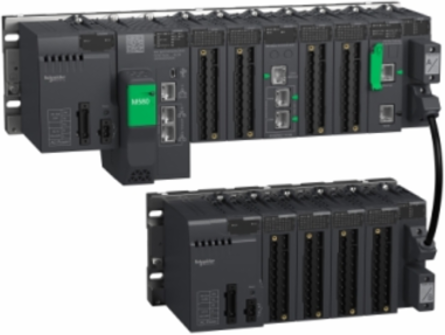

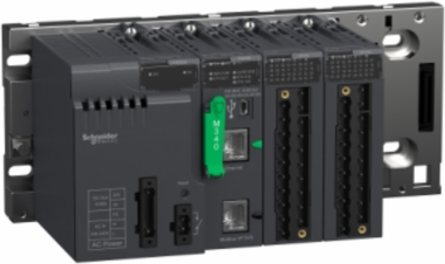

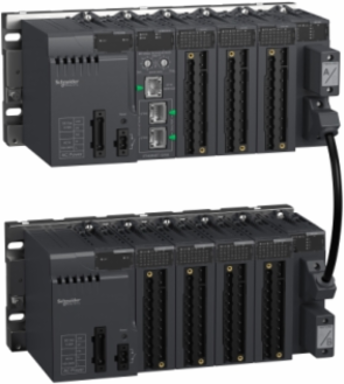

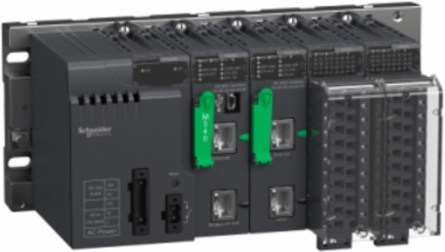

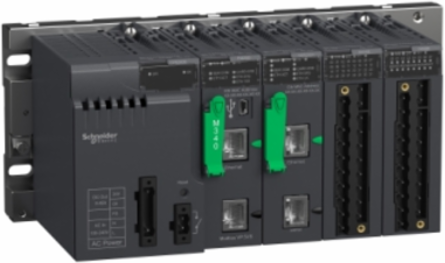

Schneider Electric BMXXBP0400 Modicon X80 Backplane, 4 Slots, 0.63 kg, IP20
- MPN: BMXXBP0400
- PPN: SCH-BMXXBP0400
CAD
$226.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This 4 slots X-bus rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). It can be mounted on DIN rail and its weight is 0.630kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, France, Mexico, United States
Depth19 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Fixing Mode
- by 4 M4/M5/M6 screws panel, by 4 M4/M5/M6 screws mounting plate, by clips 35 mm symmetrical DIN rail
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08685, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.006415625, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 48 kg CO2 eq., 48.2492753623
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2203018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2007
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Electrical Connection
- 1 connector (XBE) expansion module
- Power Consumption In W
- 1.12 W
- Product Or Component Type
- backplane
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2203018EN
- Pep Verification Date
- 2022-04-01
- Psr Version
- nan
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 15
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
- Height Nominal
- 103.7 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Manufacturing [A1-a3]
- 853.4375
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 6.415
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 1.228
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 4.221
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyCE, UL, CSA, RCM, EAC, UKCA, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.24580625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 6.415
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint6.415
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Number Of Slots4 bus X
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon X80
Software VersionEIME v5.9.3
Total Lifecycle Carbon Footprint55 kg CO2 eq.
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionX80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh78.84
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
Width Nominal242.4 mm
Package Weight(Lbs)681.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]63.8625
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]5.686
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]104.275
Water Pollution (M3) Manufacturing [A1-a3]635.625
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 55.0033472373
- Circularity Profile
- ENVEOLI2203018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2203018EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityBMXP34 processor, BMXCPS power supply, I/O module, specific application module
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2203018EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % without condensation
Pep Verification Date2022-04-01
Psr Versionnan
General Attributes
- Product Or Component Type
- backplane
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000810
ETIM 9EC000810
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
