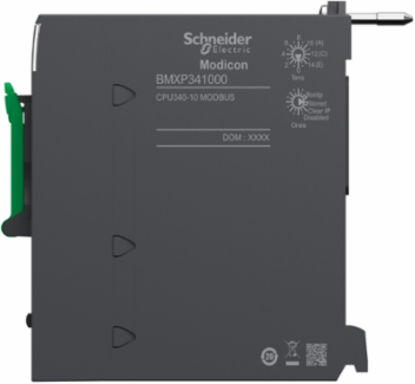

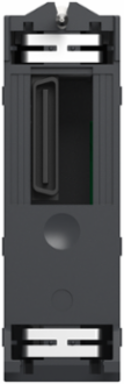

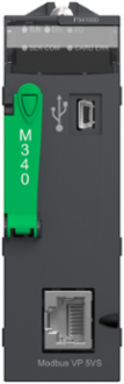

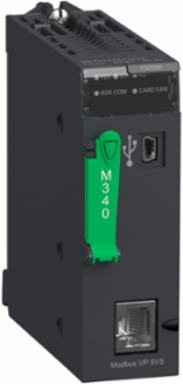

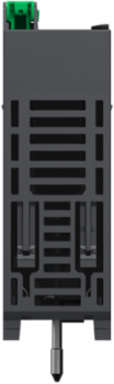

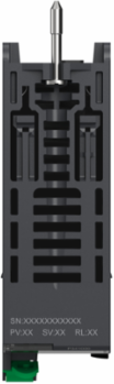

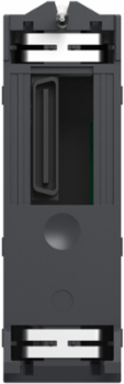

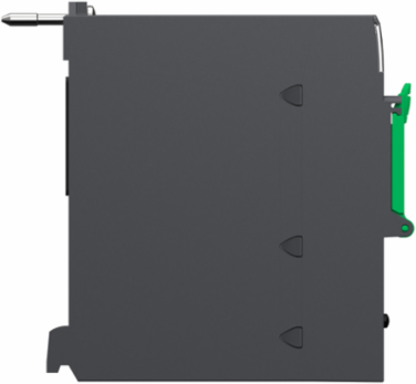

Schneider Electric BMXP341000 Modicon M340 Processor 512 Discrete I/O, 128 Analog I/O, IP20
- MPN: BMXP341000
- PPN: SCH-BMXP341000
CAD
$1484.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Communications & Management Attributes
| Communication Module Processor Capacity | 2 Ethernet communication module, 2 AS-Interface module |
|---|
Physical Attributes
| Bus Length | 0-1000 m serial link isolated Modbus segment0-15 m Modbus point-to-point, 0-10 m serial link non isolated character mode segment, 0-10 m serial link non isolated Modbus segment, 0-1000 m serial link isolated character mode segment, 0-15 m character mode point-to-point |
|---|
| Default Size Of Object Areas | 128 %KWi constant words located internal data256 %Mi located internal bits, 512 %MWi internal words located internal data |
|---|
Complementary Attributes
| Integrated Connection Type | non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex, non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex, non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplexUSB port 12 Mbit/s |
|---|---|
| Maximum Tap Links Length | <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment, <40 m serial link isolated Modbus segment<15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated character mode segment, <15 m serial link non isolated Modbus segment, <40 m serial link isolated character mode segment, <40 m serial link isolated character mode segment |
| Maximum Size Of Object Areas | 16250 %Mi located internal bits32464 %MWi internal words located internal data, 32760 %KWi constant words located internal data |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Application Structure | 1 periodic fast task, 32 event tasks, 1 cyclic/periodic master task, no auxiliary task |
| Marking | CE, UL, CSA, RCM, EAC, UKCA, China RoHS, WEEE, IEC |
| Number Of Addresses | 0-248 character mode, 0-248 Modbus |
| Number Of Devices Per Segment | 0-32 character mode), 0-32 Modbus) |
| Status Led | 1 LED (Green) processor running (RUN)1 LED (Red) I/O module fault (I/O), 1 LED (Red) memory card fault (CARD ERR), 1 LED (Red) processor or system fault (ERR)1 LED (Yellow) activity on Modbus (SER COM) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.03138375, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.095540625, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 77 kg CO2 eq., 77.0583272727 |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402021EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Concept | Modbus |
| Current Consumption | 72 mA 24 V DC |
| Memory Description | internal RAM 2048 kBinternal RAM 128 kB datainternal RAM 1792 kB program constants and symbolssupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Number Of Instructions Per Ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic5.4 Kinst/ms 100 % Boolean |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Supply | internal power supply via rack |
| System Overhead | 0.2 ms fast task1.05 ms master task |
| Pep Code | ENVPEP2402021EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Analogue I/O Processor Capacity | 128 I/O |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] | 0.9945 |
| Materials For Recycling (Kg) Installation [A5] | 0.0525 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 63154.6875 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] | 9945 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -89514.375 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1801.2672 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -9578.4375 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 29912.8125 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 9945 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -89514.375 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 10464.375 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 61029.375 |
| Water Use (M3 Eq) End Of Life [C1-c4] | 40054.6875 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Control Parameter | one LRC on each frame (ASCII) Modbus, one CRC on each frame (RTU) Modbusone LRC on each frame (ASCII) character mode |
| Monitoring | diagnostic counters Modbus, event counters Modbus |
| Number Of Devices | 2 point-to-point character mode, 2 point-to-point Modbus |
| Requests | 1 K data bytes per request character mode252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus |
| Certificate Agency | CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy, cCSAus HazLoc Class I Division 2 Group A, cCSAus HazLoc Class I Division 2 Group B, cCSAus HazLoc Class I Division 2 Group C, cCSAus HazLoc Class I Division 2 Group D |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.38625 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 16 kg CO2 eq., 16.34625 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Control Channels | programmable loops |
| Execution Time Per Instruction | 0.18 µs Boolean0.26 µs double-length words0.38 µs single-length words1.74 µs floating points |
| Number Of Application Specific Channel | 20 |
| Number Of Racks | 2 |
| Product Or Component Type | processor module |
| Range Of Product | Modicon M340 automation platform |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 94 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 32 |
| Discrete I/O Processor Capacity | 512 I/O |
| Package Weight(Lbs) | 237.000 g |
| Warranty (In Months) | 18 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 47940.9375 |
| Net Use Of Fresh Water (M3) End Of Life [C1-c4] | 10484.0625 |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -20725.3125 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 92192.8125 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] | 10658.4375 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 9394.6875 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 71492.8125 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 29912.8125 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 92192.8125 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 10464.375 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -9483.75 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 53648.4375 |
| Customs Code | 8537109160 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2012/19/EU - WEEE directive |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2402021EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 93.9177516477 |
| Circularity Profile | ENVEOLI2402021EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2402021EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | processor module |
|---|
| Range Of Product | Modicon M340 automation platform |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
