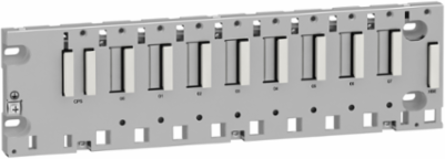

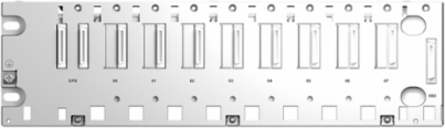

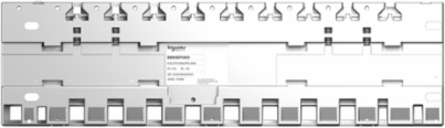

Schneider Electric BMXXBP0800 Modicon X80 Backplane, 8 Slots, 372.8 mm Width, 0.95 kg Weight

MPN: BMXXBP0800
PPN: SCH-BMXXBP0800

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$438.82/ EA

Qty:

Loading add to cart quantity...

Description

This 8 slots rack is part of the Modicon X80 modules. Number of slots comprises processor, I/O, communication and application-specific modules (excluding power supply module). This rack can be mounted on DIN rail and its weight is 0.95kg.

Specifications

Environment

Ambient Air Temperature For Operation: 0-60 °C

Product Certifications: CE || UL || CSA || RCM || EAC || UKCA || Merchant Navy

Relative Humidity: 10-95 % without condensation

StandardsEN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Ip Degree Of ProtectionIP20

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2203018EN

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileENVEOLI2203018EN

Complementary

Fixing Mode: by 4 M4/M5/M6 screws panel || by 4 M4/M5/M6 screws mounting plate || by clips 35 mm symmetrical DIN rail

Electrical Connection: 1 connector (XBE) expansion module

Number Of Slots: 8 bus X

Width: 372.8 mm

Product Compatibility: BMXP34 processor || BMXCPS power supply || I/O module || specific application module

Height103.7 mm

Power Consumption In W2.21 W

Net Weight0.95 kg

Depth19 mm

Specifications

Range Of Product: Modicon X80

Product Or Component Typebackplane
