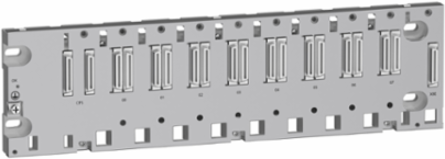

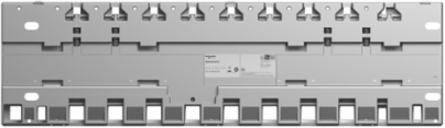

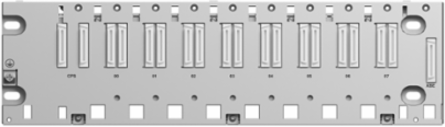

Schneider Electric BMEXBP0800H Modicon X80 Ethernet Backplane Rack 8 Slots IP20 1.06kg
- MPN: BMEXBP0800H
- PPN: SCH-BMEXBP0800H
CAD
$985.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for severe environments, medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Environmental Characteristic | gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1377756818, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0101775142, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 198 kg CO2 eq., 198.3527710145 |
| Local Publishable Date | 2026-02-19 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 1 connector (XBE) expansion module |
| Mtbf Reliability | 1297516 H |
| Power Consumption In W | 211 mW 3.3 V DC3.9 W 24 V DC |
| Product Specific Application | for severe environments |
| Range Of Product | Modicon X80 |
| Software Version | EIME v5.9.3 |
| Total Lifecycle Carbon Footprint | 209 kg CO2 eq. |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 15 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.3899380966 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.1765227273 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2203018EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2007 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Consumption | 64 mA 3.3 V DC164 mA 24 V DC |
| Fixing Mode | by 4 screws 4.32-6.35 mm panelby 4 M6 screws plateby clips 35 mm symmetrical DIN rail |
| Number Of Slots | 8 bus X + Ethernet |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2203018EN |
| Pep Verification Date | 2022-04-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US |
| Accessory / Separate Part Type | ruggedized rack |
| Package Weight(Lbs) | 1.047 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | I/O module, BMX processor, specific application module, BMXCPS power supply, BME processor |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2203018EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2203018EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 209.0671850344 |
| Environmental Disclosure | ENVPEP2203018EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2022-04-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC000810 |
|---|
| ETIM 9 | EC000810 |
|---|
