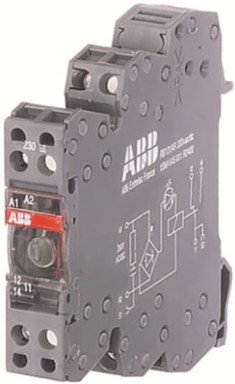

ABB 1SNA645518R0500 RBR111R-24VUC Boxed Interface Relay 24V AC/DC, 1 n/o, 6A, Spring Terminals
ABB 1SNA645518R0500 RBR111R-24VUC Boxed Interface Relay 24V AC/DC, 1 n/o, 6A, Spring Terminals
- MPN: 1SNA645518R0500
- PPN: ABB-1SNA645518R0500
- UNSPSC: 39122331
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.48/ EA
Description
The RBR111R-24VUC is a boxed interface relay with spring terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibrationand this is further enhanced by the spring terminals which improve contact reliability by automatically adjusting the tension to the wire gauge.This relay operates with a 24 V AC/DC rated control supply voltage and has a 1 n/o (SPST) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
Specifications
Dimensions
- Product Net Width
- 12 mm
- Product Net Depth / Length
- 75 mm
Product Net Height67.5 mm
Product Net Weight0.04 kg
Technical
- Function
- Boxed interface relay R600
- Rated Control Supply Voltage (Us)
- 24 V AC/DC
- Output Signal
- 5 ... 250VAC / 60mA ... 6A
- Degree of Protection
- IP20
Sub-FunctionRelay with built in LED and RC circuit
Output1 n/o contact
Terminal TypeSpring Terminals
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60947-5-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371601
ETIM 9EC001437 - Switching relay
E-Number (Sweden)4001124
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 5 piece
Customs Tariff Number85364900
