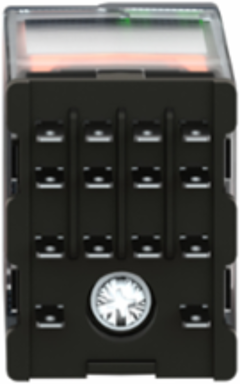

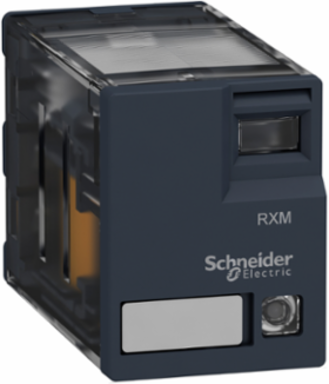

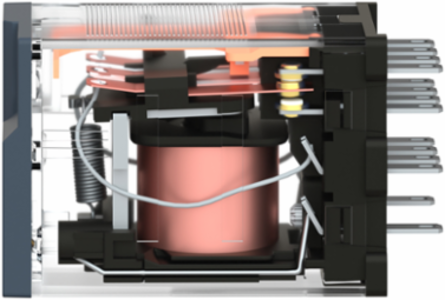

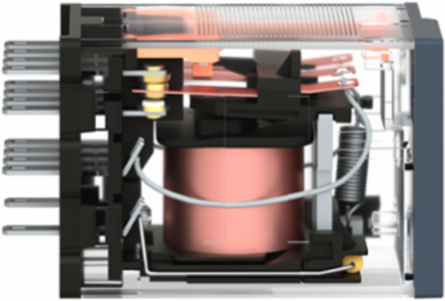

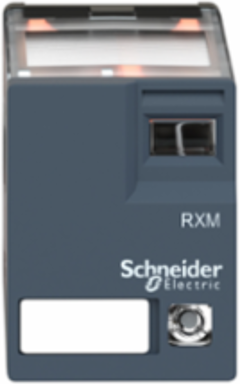

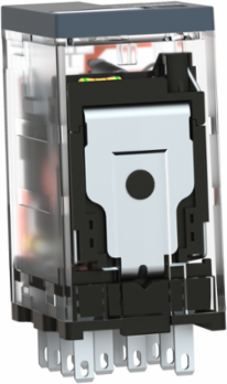

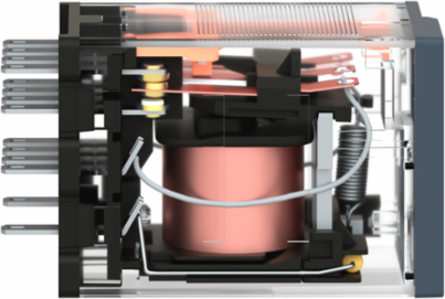

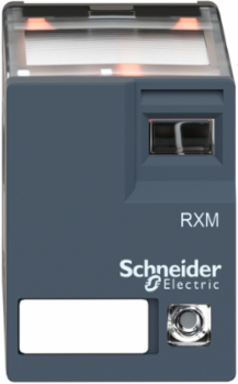

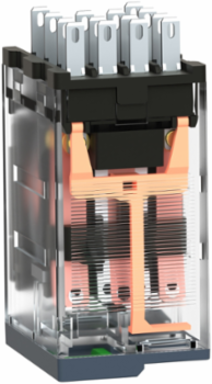

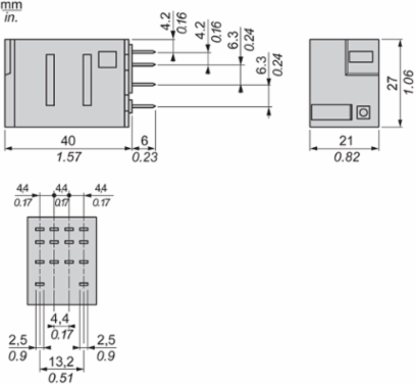

Schneider Electric RXM4AB3BD Miniature Plug-in Relay, 6A, 4 CO, 24V DC, with LED, IP40
- MPN: RXM4AB3BD
- PPN: SCH-RXM4AB3BD
CAD
$17.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Miniature Plug-in Relay, 6A, 4 CO, 24V DC, with LED, IP40
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Complementary Attributes
- Control Circuit Type
- DC
- Maximum Switching Capacity
- 1500 VA/168 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current6 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Status Led
- with, with
- Contacts Composition
- 4 C/O
- [Ie] Rated Operational Current
- 6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC, 3 A 250 V AC) NC IEC, 6 A 28 V DC) NO IEC, 6 A 277 V AC) UL, 8 A 30 V DC) UL
- [Ui] Rated Insulation Voltage
- 250 V IEC, 300 V CSA, 300 V UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0047091588, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.284825867
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 7.37
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 650 Ohm 20 °C +/- 10 %
- Contacts Material
- AgNi
- Control Type
- without lockable test button
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 15 kg CO2 eq.
- Control Circuit Voltage
- 24 V
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Package Weight(Lbs)
- 36.000 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 189.726
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Load Current6 A 250 V AC, 6 A 28 V DC
Shock Resistance10 gnin operation, 30 gnnot operating
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Certificate AgencyUL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
[Uc] Control Circuit Voltage24 V DC, 24 V
Carbon Footprint Of The Distribution Phase [A4]0.0046448158, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0002201466
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]15 kg CO2 eq., 14.9935628571
Local Publishable Date2026-03-26
Future Imap6.6
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2106019EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption0.9 W
Compatibility CodeRXM
Contacts Type And Composition4 C/O
Electrical Durability100000 cycles resistive
Operating Positionany position
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeminiature relay
ReturnabilityYes
Series NameRXM series
Software VersionEIME v5.9.1
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]189.726
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint15.2879628453
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106019EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Output Attributes
- Continuous Output Current
- 5 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
