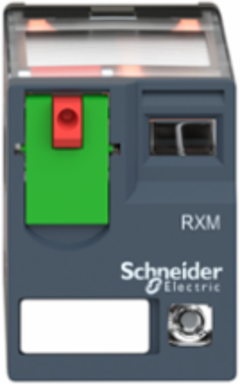

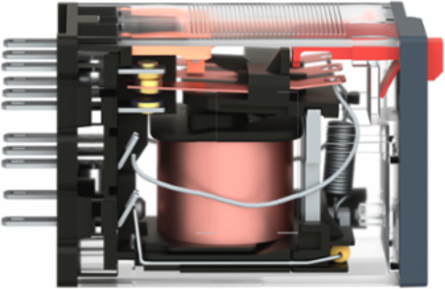

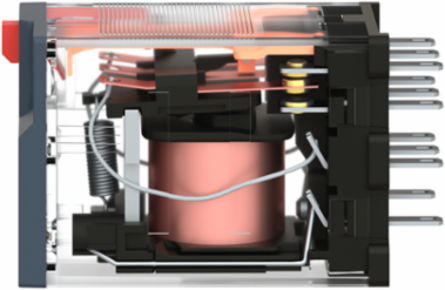

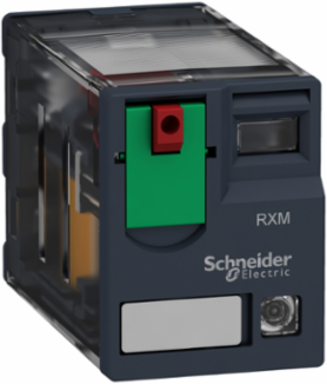

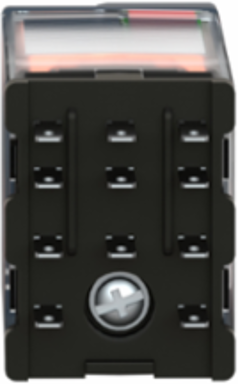

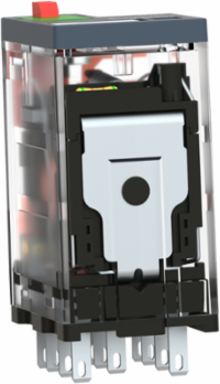

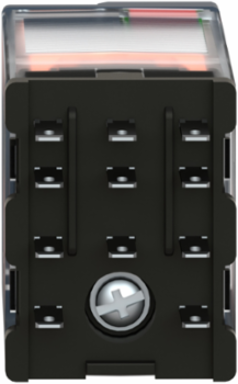

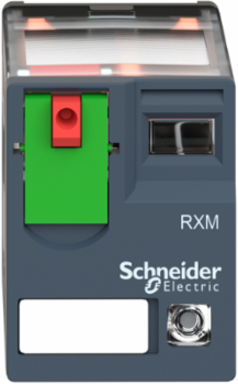

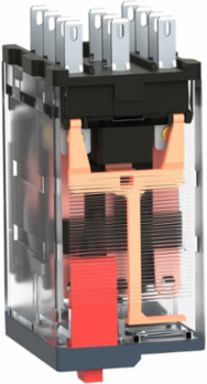

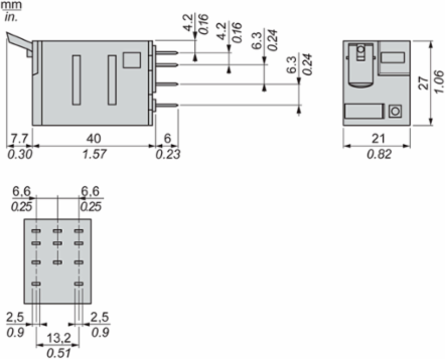

Schneider Electric RXM3AB2B7 Harmony Miniature Plug-in Relay, 10A, 24V AC, 3 C/O Contacts, IP40
- MPN: RXM3AB2B7
- PPN: SCH-RXM3AB2B7
CAD
$17.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RXM miniature plug-in relay has a coil control voltage of 24V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0
Features
- This miniature relay features a native 24V AC coil voltage (50/60 Hz) engineered for seamless integration with industrial programmable logic controllers (PLCs) and hard-wired automation setups. This ensures reliable, drop-in compatibility with your existing control circuit infrastructure without needing costly power transformers or complex rewiring.
- Equipped with 3 changeover contacts , this relay allows you to control three separate circuits at the exact same time. This dense multi-circuit capability reduces component count, drastically simplifies your hard-wired logic layout, and saves valuable rail space inside crowded control enclosures.
- This relay is equipped with a high-visibility "Power On" status LED alongside a mechanical indicator and a one-step lockable manual test button. This dual visual system allows operators to instantly confirm system readiness day or night, while the manual override button lets you test circuit functionality instantly without firing up the entire control system.
- Built with premium silver nickel (AgNi) contacts, it features a heavy-duty continuous thermal current rating of 10A at 250V AC or 28V DC. This high-capacity rating prevents contact welding and premature wear under tough resistive loads, maximizing system uptime and machinery reliability in continuous-use environments.
- The unit is fully compliant with strict North American and global safety mandates, carrying official UL, CSA, CE, and RoHS certifications while conforming to IEC 61810-1 standards. This comprehensive regulatory backing guarantees absolute peace of mind during commercial safety inspections and ensures code compliance across energy distribution panels and public works applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Physical Attributes
- Cad Overall Depth
- 78.45 mm
Cad Overall Height79 mm
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 2500 VA/280 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current10 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection2000 V AC between coil and contact, 2000 V AC between poles
- Control Circuit Voltage
- 24 V
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- [Uc] Control Circuit Voltage
- AC 50/60 Hz, 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0047738385, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0002262618
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 20.728963879
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Consumption
- 1.2 VA 60 Hz
- Compatibility Code
- RXM
- Contacts Type And Composition
- 3 C/O
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Software Version
- EIME v5.9.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 21 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Recyclability Potential In %
- 55
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Type2AC
[Ie] Rated Operational Current5 A 250 V AC) NC IEC10 A 28 V DC) NO IEC10 A 250 V AC) NO IEC5 A 28 V DC) NC IEC10 A 30 V DC) UL, 10 A 277 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2927376966
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2106019EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption In Va1.2-1.2 60 Hz
Average Resistance180 Ohm 20 °C +/- 15 %
Contacts MaterialAgNi
Control Typelockable test button
Load Current10 A 250 V AC10 A 28 V DC
Operating Positionany position
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeminiature relay
ReturnabilityYes
Series NameRXM series
Shock Resistance10 gnin operation30 gnnot operating
Status Ledwith
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Ithe] Conventional Enclosed Thermal Current10 A
Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
Package Weight(Lbs)37.000 g
Warranty (In Months)18
