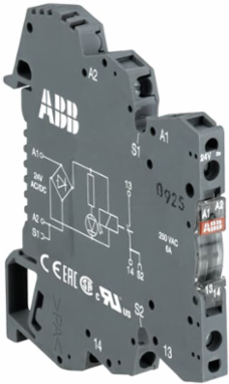

ABB 1SNA645511R2600 Interface Relay R600 1 c/o 230 V AC/DC SPDT 6A with LED Protection

The RBR121R-230VUC is a boxed interface relay with spring terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibrationand this is further enhanced by the spring terminals which improve contact reliability by automatically adjusting the tension to the wire gauge.This relay operates with a 230 V AC/DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
