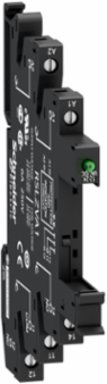

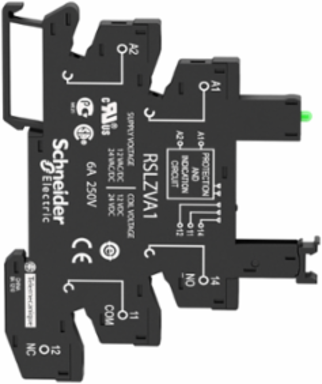

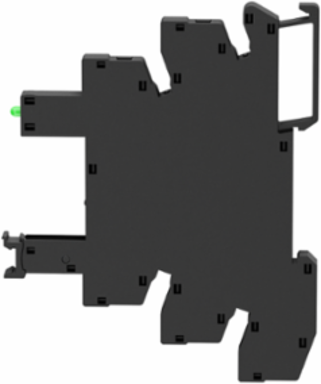

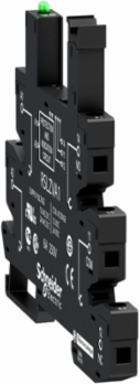

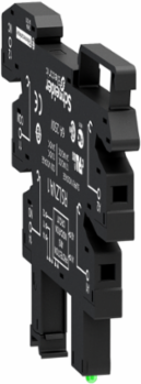

Schneider Electric RSLZVA1 Harmony Relay Socket with LED Indicator, 12-24V AC/DC, 6.2mm Width

  • MPN: RSLZVA1
  • PPN: SCH-RSLZVA1
  • UNSPSC: 39122326
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $13.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."

    Features

    • Maximize valuable DIN-rail real estate with this extremely compact interfacing relay socket, engineered specifically for tight industrial automation enclosures. By dramatically reducing panel space requirements compared to standard ice-cube relays, panel builders can design smaller, more cost-effective control systems without sacrificing modularity or performance.
    • Equipped with a built-in 12-24V AC/DC LED indicator, this Schneider Zelio socket provides instant visual confirmation of input control signals, eliminating the need for manual multimeter testing during routine maintenance. Coupled with an internal surge suppression and polarity protection circuit, it actively shields your sensitive Programmable Logic Controllers (PLCs) from damaging transient voltage spikes.
    • Featuring universally accepted, robust screw clamp connectors, this socket ensures a secure, high-torque wire termination for solid or stranded conductors. This vibration-resistant connection method prevents dangerous wire pull-outs in harsh manufacturing environments, reducing frustrating downtime and ensuring reliable low-level signal transmission between your automated controllers and field devices.
    • Designed for a fast, snap-on installation onto any standard 35mm symmetrical DIN rail, this component drastically speeds up both new OEM machine building and legacy equipment retrofitting. Fully compliant with strict UL, CSA, and IEC international safety standards, it guarantees seamless mechanical compatibility and regulatory peace of mind for industrial electricians and facility engineers globally.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, United States
    Weight23 g

    Physical Attributes

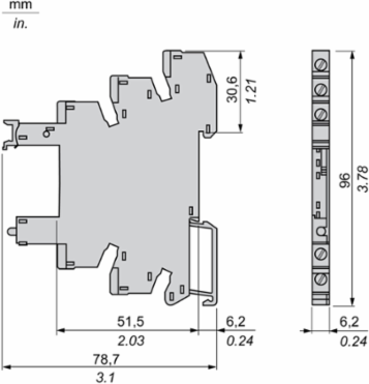

    Cad Overall Depth95 mm
    Cad Overall Width6.2 mm
    Cad Overall Height78.6 mm

    Complementary Attributes

    Rated Operational Voltage Limits11.4...14.4 V, 21.6...28.8 V
    Ue Rated Operational Voltage< 300 V AC, < 300 V AC< 300 V AC, < 300 V AC
    Uimp Rated Impulse Withstand Voltage3.6 kV
    Uc Control Circuit Voltage12 V, 24 V
    Line Rated Current6 A

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Switching Voltage12 V AC/DC, 24 V AC/DC
    Connections Terminalsscrew connectors, connector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endconnector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
    Carbon Footprint Of The Distribution Phase A40.0029674945, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0001390679, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
    Local Publishable Date2026-08-10
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementseparate
    Device Short NameRSLZ
    Group Of ProductRSL_CON_12-24
    Overvoltage CategoryIII
    Product Or Component Typesocket
    ReturnabilityYes
    Shape Of Pinflat
    Sustainable PackagingYes
    Database Version2018-09
    Nbr. Of Units In Pkg.1
    Ith Conventional Free Air Thermal Current6 A
    Functional Unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
    Functional Unit Unitunité (unit)
    Recyclability Potential In %70
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Tightening Torque< 0.4 N.m M2.5, < 0.4 N.m M2.5< 0.4 N.m M2.5, < 0.4 N.m M2.5
    Certificate AgencyCSA, GOST
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0058696229
    Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.7178809598
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRSLZ
    Contacts Type And Composition1 C/O
    Fixing Modeplastic compression spring (35 mm symmetrical DIN rail)
    MarkingCE
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Electromechanical Relays
    Sale Per Indivisible Quantity10
    Software VersionEIME v5.7.0.4
    Total Lifecycle Carbon Footprint0.7 kg CO2 eq.
    Data Sourceextrapolated product
    Customs Code8536904000
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Product Compatibilityplug-in relay RSL 1 C/O 12 V DC, plug-in relay RSL 1 C/O 24 V DC
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2502015EN
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.7268571452
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502015EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesocket
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001456
    ETIM 10EC001456
    ETIM 9EC001456

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationbasic element
