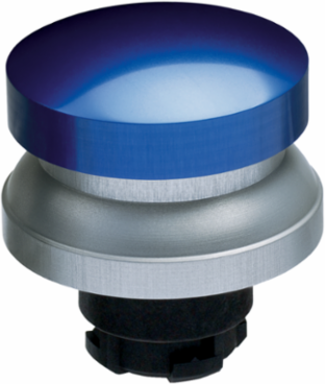

Schmersal 101188290 RDP40BL Round Push Button, 22.3 mm Mounting, IP65, 37.5 mm Height
- MPN: 101188290
- PPN: SCM-101188290
CAD
$94.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RDP40BL Round Push Button, 22.3 mm Mounting, IP65, 37.5 mm Height
Features
- without latching
Documentation & Downloads
Specifications
Key Specifications
- Height
- 37.5 mm
Electrical data
- Switching frequency
- 1,200 /h

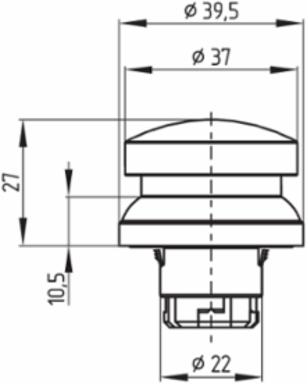

Mechanical data - Dimensions
- Height
- 37.5 mm
- diameters for the actuating heads
- 37 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
Diameter total39.5 mm
Diameter of the front ring39.5 mm
Thickness, of the front panel, minimum1 mm
Spacing40 x 50 mm
General data - Features
- Mounting flange
- Yes
- Fully insulated
- Yes
Probing possibleYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Round
- Sealing type
- Membrane | Lip gaskets | Form seals
- Material of the front ring
- Aluminium
- Colour of the front ring
- Silver
VersionsLatched pushbutton - Front plate mounting
Installation conditions (mechanical)arbitrarily
Material of the operatorsAluminium
Colour of the operating elementBlue
Gross weight70 g
Ambient conditions
- Degree of protection
- IP65
- Restistance to shock
- 50 g
Ambient temperature-25 ... +75 °C
Mechanical data
- Unlocking
- without
- Actuating stroke
- 4 mm
- Mounting
- Mounting flange EFM
Mechanical life, minimum1,000,000 Operations
Actuating force, approx.2 N
Tightening torque of the screw0.6 Nm
