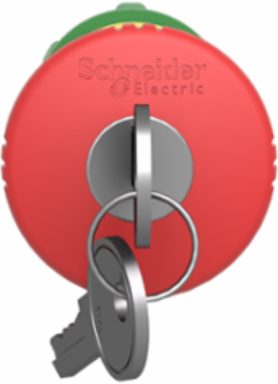

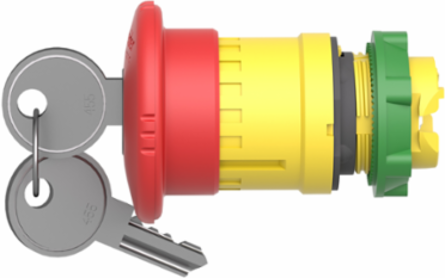

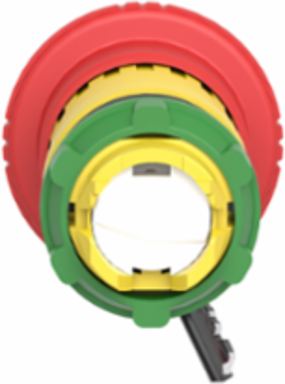

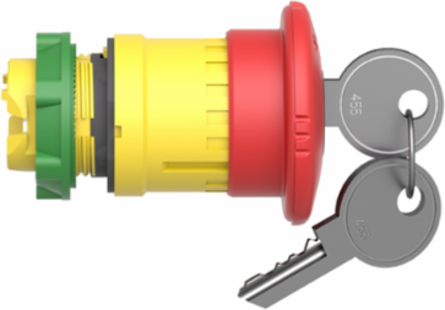

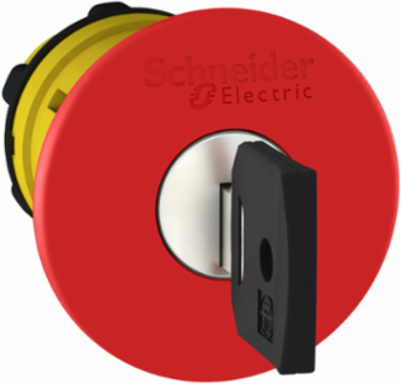

Schneider Electric ZB5AS944 Harmony XB5 Emergency Stop Head, 40mm Red Mushroom, IP66/IP67/IP69K
Schneider Electric ZB5AS944 Harmony XB5 Emergency Stop Head, 40mm Red Mushroom, IP66/IP67/IP69K
- MPN: ZB5AS944
- PPN: SCH-ZB5AS944
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$144.20/ EA
Description
This Harmony XB5, Emergency stop 40mm mushroom red button head operates with a latched key release (key no.455) mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- BV || CSA || GL || UL listed || DNV || LROS (Lloyds register of shipping)
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60364-5-53 || JIS C8201-5-1 || IEC 60947-1 || GB 14048.5 || IEC 60947-5-5 || IEC 60204-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || ISO 13850 || IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Cad Overall Height
- 40 mm
- Compatibility Code
- ZB5
- Cad Overall Width
- 40 mm
Net Weight0.071 kg
Mechanical Durability300000 cycles
Station NameXALD 1 cut-out || XALK 1 cut-out
Cad Overall Depth79 mm
Specifications
- Product Destination
- emergency stop push-button
- Range Of Product
- Harmony XB5
- Type Of Operator
- trigger action and mechanical latching
- Shape Of Signaling Unit Head
- round
- Device Presentation
- basic element
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Type Of Keylock
- key 455
Resetkey release
Mounting Diameter22 mm
Product Or Component Typehead for emergency stop push-button
Head Typestandard
Key Withdrawal Positioncenter
Bezel Materialdark grey plastic
Device Short NameZB5
