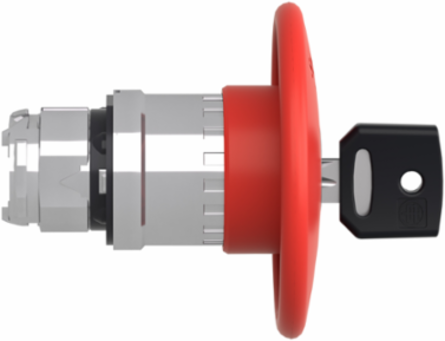

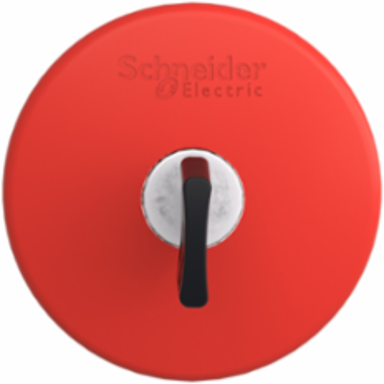

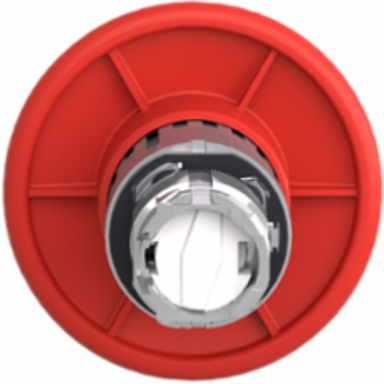

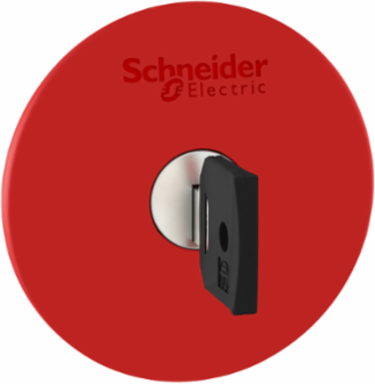

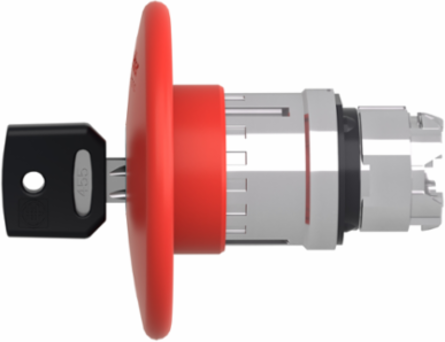

Schneider Electric ZB4BS964 Harmony XB4 Emergency Stop Head, 60mm Red Mushroom, IP66
- MPN: ZB4BS964
- PPN: SCH-ZB4BS964
CAD
$144.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB4, emergency stop / shutdown 60mm mushroom red button head operates with a latched key release (key no.455) mechanism. This emergency stop / shutdown button head also called EMS (Emergency Machine Stop) and EMO (Emergency Off) provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off pushbuttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Reset
- key release
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for emergency switching off push-button
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- red mushroom Ø 60 mm, unmarked
- Type Of Keylock
- key 455
Range Of ProductHarmony XB4
Type Of Operatortrigger action and mechanical latching
Shape Of Signaling Unit Headround
Key Withdrawal Positioncenter
Bezel Materialchromium plated metal
Device Short NameZB4
Complementary
- Electrical Composition Code
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
- Cad Overall Height
- 60 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 60 mm
Net Weight0.118 kg
Device Presentationbasic element
Mechanical Durability300000 cycles
Cad Overall Depth79 mm
Environment
- Product Certifications
- CSA || GL || BV || LROS (Lloyds register of shipping) || UL listed || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsGB 14048.5 || IEC 60947-5-5 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60204-1 || IEC 60364-5-53 || UL 508 || ISO 13850 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass I IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2201004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2201004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
