Complete Illuminated Push Button, 16mm, 1NO + 1NC, 12-24V AC/DC, IP65
Schneider Electric

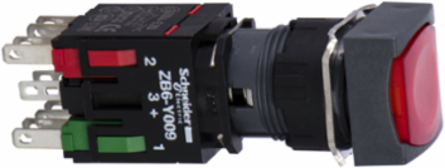

Schneider Electric XB6CW4B5B Complete Illuminated Push Button, 16mm, 1NO + 1NC, 12-24V AC/DC, IP65

  • MPN: XB6CW4B5B
  • PPN: SCH-XB6CW4B5B

CAD

$60.82

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for precision in industrial automation, this illuminated push button from Schneider Electric is a vital component for efficient control systems. Featuring a compact 16mm design, it offers both a normally open (NO) and a normally closed (NC) contact configuration, making it versatile for various applications. Designed to operate on a voltage range of 12-24V AC/DC, this device is equipped with a robust IP65 rating, ensuring reliable performance even in challenging environments. Ideal for enhancing operational control, the XB6CW4B5B is a dependable choice for professionals seeking quality and functionality in pilot devices.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Mexico

Physical Attributes

Cad Overall Depth
57 mm
Cad Overall Width
18 mm
Cad Overall Height18 mm

Important Information Attributes

Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Certificate Agency
CSA, CCC, GOST, UL
Carbon Footprint Of The Distribution Phase [A4]
0.002092254, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0018038356, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.4 kg CO2 eq., 0.3965891348
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2403025EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Bezel Material
plastic
Compatibility Code
XB6
Contacts Material
silver alloy (Ag/Ni)
Current Consumption
15 mA
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electromagnetic Emission
class B IEC 55011
Mounting Diameter
16 mm
Operating Position
any position
Operator Profile
red flush, unmarked
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TC
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Resistance To Fast Transients
2 kV IEC 61000-4-4
Sale Per Indivisible Quantity
1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version
v5.9.4
Sustainable Packaging
No
Type Of Operator
spring return
Pep Code
ENVPEP2403025EN
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536509031
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0290291407
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3574296389
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Device Short NameXB6
Electrical Shock Protection Classclass II conforming to IEC 61140
Light SourceLED
Operating Force3.5 N NO changing electrical state4.5 N NC changing electrical state
Operating Travel1 mm NO changing electrical state)2 mm NC changing electrical state)3.5 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typecomplete illuminated push-button
Range Of ProductHarmony XB6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
ReturnabilityNo
Shape Of Signaling Unit Headsquare
Signalling Typesteady
Supply Voltage Limits6-30 V AC/DC
Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %17
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Us] Rated Supply Voltage12...24 V AC/DC
Short-circuit Protection6 A cartridge fuse gG
Package Weight(Lbs)23.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Nema Degree Of Protection
NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI2403025EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint0.786944004
Environmental DisclosureENVPEP2403025EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2403025EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
complete illuminated push-button
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC001028
ETIM 9EC001028

Surge Protection And Filtering Attributes

Surge Withstand
1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
