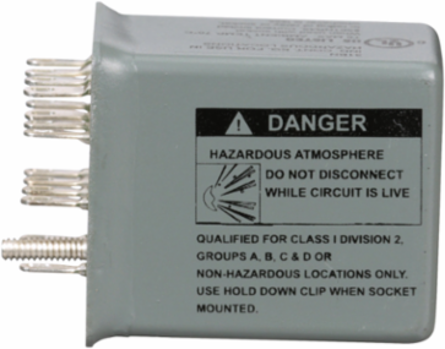

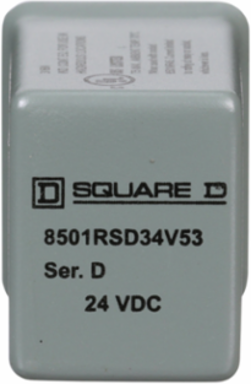

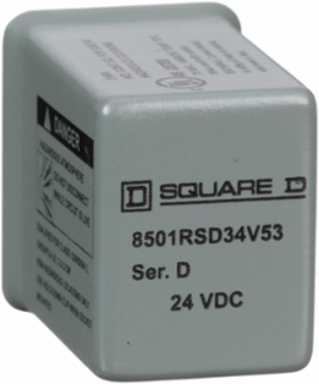

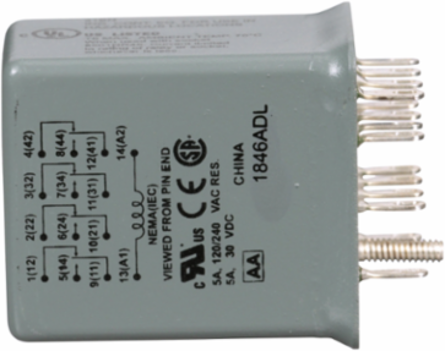

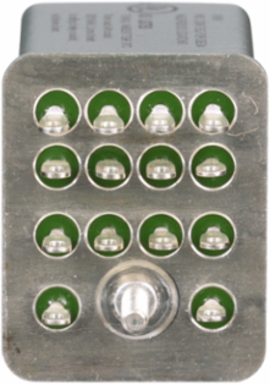

Square D 8501RSD34V53 Miniature Relay, Harmony 8501R, low voltage, hermetically, 4PDT, 14 blades, coil, 5A resistive at 240V AC, 24V DC, 4NO+ 4NC
Square D 8501RSD34V53 Miniature Relay, Harmony 8501R, low voltage, hermetically, 4PDT, 14 blades, coil, 5A resistive at 240V AC, 24V DC, 4NO+ 4NC
- MPN: 8501RSD34V53
- UPC: 785901031895
- PPN: SCH-8501RSD34V53
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$83.86/ EA
Description
8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed || UL recognized || CSA || CE
Ambient Air Temperature For Operation-40-131 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- [Uc] Control Circuit Voltage
- 24 V DC
- Local Signalling
- no indicator
- Contacts Material
- hermetically sealed silver tin oxide
- Shape Of Pin
- spade
- Rated Breaking Capacity
- 5 A 120 V AC resistive control circuit UL 508 || 5 A 240 V AC resistive control circuit UL 508 || 5 A 30 V DC resistive control circuit UL 508
- Width
- 23.1 mm
- Product Compatibility
- 8501NR45
- Control Type
- without test button
Height29.4 mm
Mounting Supportsocket
Rated Power In Hpnot rated
Switch Function4PDT
Operating Time20 ms - pick-up || 20 ms - drop-out
Depth38.9 mm
Maximum Switching Voltage30 V DC || 240 V AC
Specifications
- Relay Type
- low voltage
- Product Or Component Type
- Miniature Relay
Range Of Product8501R
