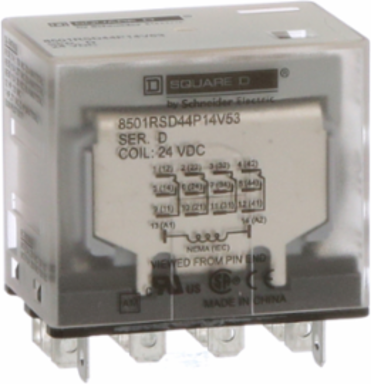

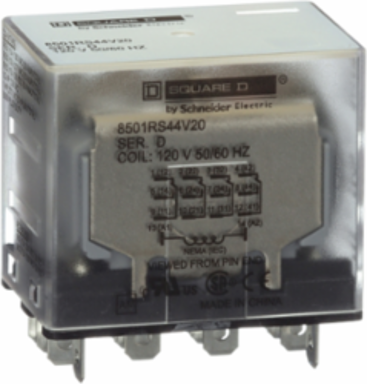

Square D 8501RSD44P14V53 Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VDC coil
Square D 8501RSD44P14V53 Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VDC coil
- MPN: 8501RSD44P14V53
- UPC: 785901137245
- PPN: SCH-8501RSD44P14V53
- UNSPSC: 39122325
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$81.92/ EA
Description
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Features
- 8501R relays are suited for use as logic elements and power switching output devices.
- The short stroke motion of the armature provides long mechanical life for high speed operation of control systems.
- Horsepower rated, 4PDT composition, and 1, 3, or 5 Ampere versions available.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, UL Recognized, CSA, CE
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC, 30 V DC
- Rated Power In HP
- 0.5 120 V AC, 1 277 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 120 V AC resistive control circuit UL 508, 6.67 A 277 V AC resistive control circuit UL 508, 10 A 28 V DC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 20 ms - pick-up, 20 ms - drop-out
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1310013EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Material
- silver alloy, gold flashed
- Local Signalling
- green indicator relay energised LED
- Package Weight Lbs
- 72.575 g
- Product Or Component Type
- Miniature Relay
- Relay Type
- standard
- Shape Of Pin
- spade
- Switch Function
- 4PDT
- Medium Desc
- Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VDC coil
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Control Typewithout test button
Mounting Supportsocket
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501R
ReturnabilityYes
Sustainable PackagingNo
Uc Control Circuit Voltage224 V DC
Stocking FlagN
Pep CodeENVPEP1310013EN
Uc Control Circuit Voltage524 V DC
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- -40-131 °F
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Without Single Use Plastic
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1310013EN
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Circularity ProfileENVEOLI1310013EN
Packaging Made With Recycled CardboardNo
Product Compatibility8501NR34
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Miniature Relay
Range Of Product8501R
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
