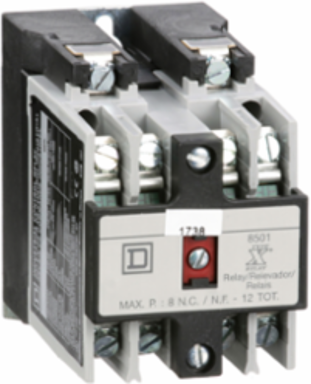

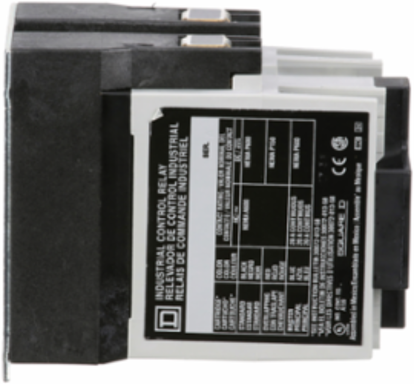

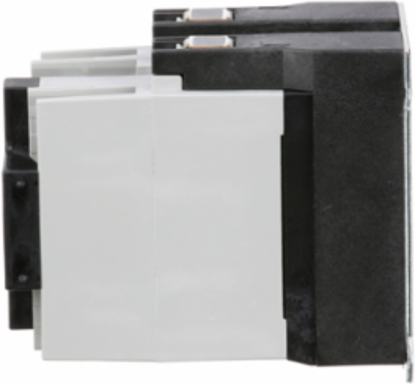

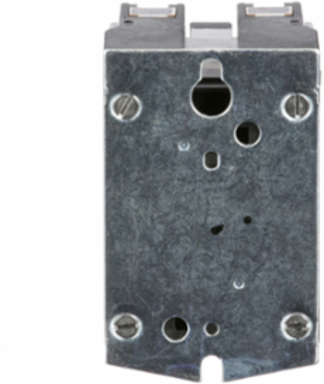

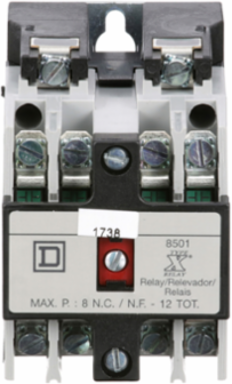

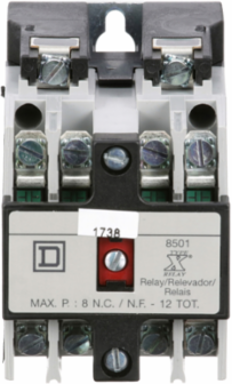

Square D 8501XO40V03 NEMA Control Relay, 10A at 600 VAC, 4 Normally Open Contacts, 2.23 Inch Width, 3.5 Inch Height
- MPN: 8501XO40V03
- UPC: 785901536758
- PPN: SCH-8501XO40V03
CAD
$246.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This control relay from Schneider Electric is engineered to offer robust functionality in automation and control applications. Designed for versatility, it features four normally open contacts and can handle up to 10 amps of resistive load, making it a reliable choice for a variety of operational setups. With its compatibility with 220/240V AC, this NEMA-rated relay ensures dependable performance in environments where efficiency and safety are paramount. Whether you're integrating it into a new system or upgrading an existing one, this relay serves as a critical component in managing electrical control circuits effectively.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Depth3.95 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc AC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78403 CCN NKCR, CSA LR60905 class 3211 03
- Carbon Footprint Of The Distribution Phase [A4]
- 0.12749608184687708, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.24883704495634654, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 169 kg CO2 eq., 168.55882352941177
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 18 AWG...12 AWG copper
- Electrical Connection
- screw clamp terminals
- Mounting Support
- panel
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 8501X
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 177 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 3.5 in
- [Uc] Control Circuit Voltage
- 220 V AC 50 Hz240 V AC 60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.711908768838146
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.995740450100738
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition4 NO 4 standard contact cartridges
Inrush Power In Va148-148 VA 60 Hz143-143 VA 50 Hz
Operating Time15 ms - pick-up16 ms - drop-out
Product Or Component Typerelay
Relay Typecontrol
Software Versionv5.9.4
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Pep CodeENVPEP1310013EN
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %70
Width Nominal2.23 in
Hold-in Power Consumption In Va23-23 VA 60 Hz25-25 VA 50 Hz
Package Weight(Lbs)974.997 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint176.6428058751539
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
