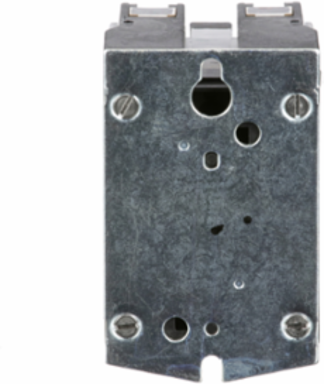

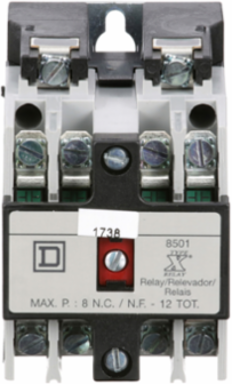

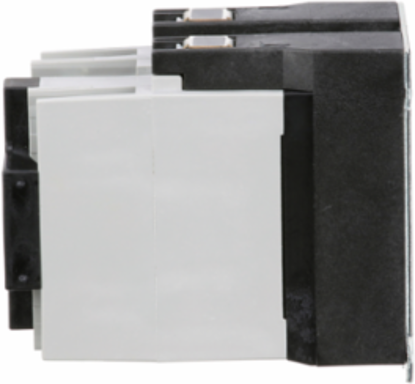

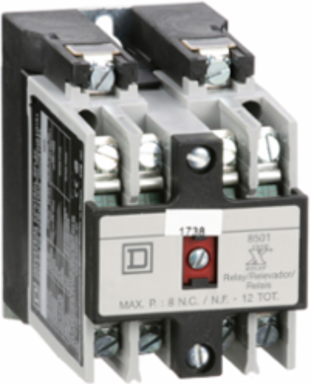

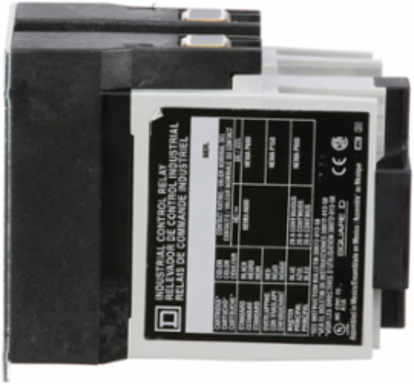

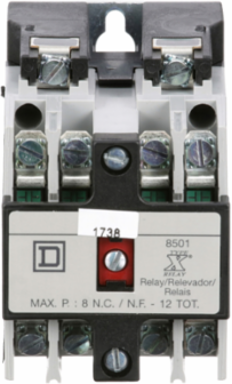

Square D 8501XO40V06 NEMA Control Relay, 10A Resistive at 600 VAC, 4 NO Contacts, 440/480 VAC
- MPN: 8501XO40V06
- UPC: 785901536772
- PPN: SCH-8501XO40V06
CAD
$246.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This NEMA control relay from Schneider Electric is a robust solution designed for automation and control applications. With a capacity of 10A at 600 VAC and equipped with four normally open contacts, it provides reliable operation in various industrial settings. The relay is optimized to handle voltages of 440 to 480 VAC, ensuring it meets the demands of modern electrical systems. Ideal for panel builders and control systems, this product exemplifies precision engineering and dependable performance in the realm of relays and timers.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth3.95 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc AC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Inrush Power In Va
- 148-148 VA 60 Hz143-143 VA 50 Hz
- Operating Time
- 15 ms - pick-up16 ms - drop-out
- Product Or Component Type
- relay
- Relay Type
- control
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1310013EN
- Width Nominal
- 2.23 in
- Hold-in Power Consumption In Va
- 23-23 VA 60 Hz25-25 VA 50 Hz
- Package Weight(Lbs)
- 984.295 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge18 AWG...12 AWG copper
Electrical Connectionscrew clamp terminals
Mounting Supportpanel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of Product8501X
ReturnabilityYes
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Height Nominal3.5 in
[Uc] Control Circuit Voltage440 V AC 50 Hz480 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1409020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1310013EN
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
