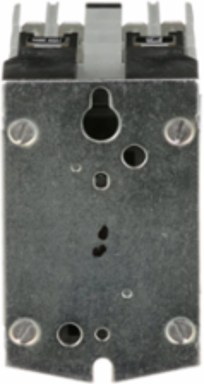

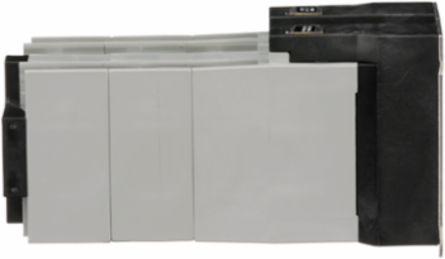

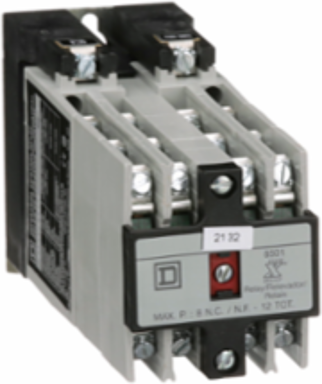

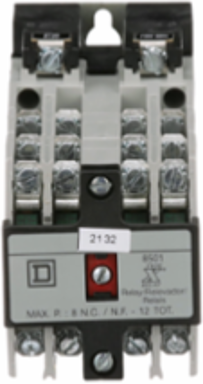

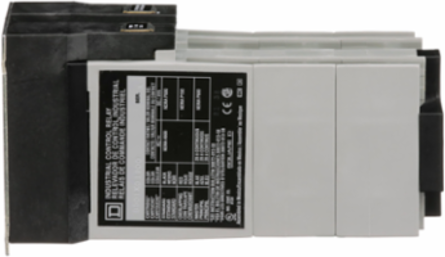

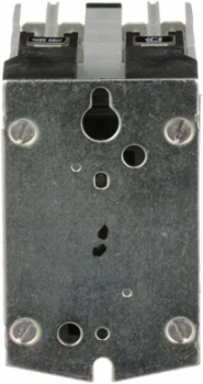

Square D 8501XO1200V02 Harmony Relay 10A 600V AC, 110/120V AC Coil, Screw Clamp Terminals
- MPN: 8501XO1200V02
- UPC: 785901536864
- PPN: SCH-8501XO1200V02
CAD
$493.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with twelve 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The twelve plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 110/120 VAC 50/60 VAC replaceable coil. Relay is 3.50 inches tall, 2.23 inches wide and 6.36 inches deep. Relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth6.36 in
Complementary Attributes
- Line Rated Current
- 10 A AC, 5 A DC
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc AC 50/60 Hz
Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 148-148 VA 60 Hz, 143-143 VA 50 Hz
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1737875016789792, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.33918507723304236, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 174 kg CO2 eq., 173.61558823529407
- Local Publishable Date
- 2026-01-12
- Future Imap
- 382.2
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 18...AWG 12 copper
- Electrical Connection
- screw clamp terminals
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 8501X
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 185 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 3.5 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Time15 ms - pick-up, 16 ms - drop-out
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Hold-in Power Consumption In Va23-23 VA 60 Hz, 25-25 VA 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.3334705171255874
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 8.172680591000672
Local Data StatusPublishable
Return IndicatorY
Future Msrp426.56
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition12 NO 12 standard contact cartridges
Mounting Supportpanel
Product Or Component Typerelay
Relay Typecontrol
Software Versionv5.9.4
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Pep CodeENVPEP1310013EN
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal2.23 in
Package Weight(Lbs)1.329 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint184.63471192233234
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
