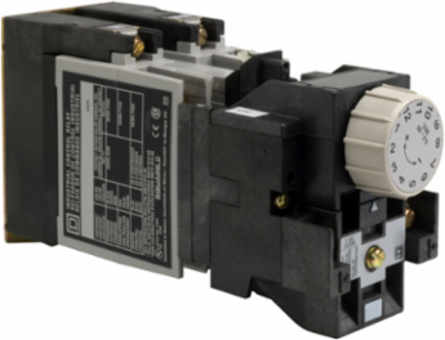

Square D 8501XO40XTD1V02 NEMA Control Relay, 4 Normally Open, Timing, 10A at 600 VAC
- MPN: 8501XO40XTD1V02
- UPC: 785901537427
- PPN: SCH-8501XO40XTD1V02
CAD
$678.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth6.55 in
Complementary Attributes
- Line Rated Current
- 10 A AC, 5 A DC
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc AC 50/60 Hz
Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 148-148 VA 60 Hz, 143-143 VA 50 Hz
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 586.63
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Mounting Support
- panel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 8501X
- Returnability
- Yes
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminal
- Time Delay Type
- off-delay
- Height Nominal
- 3.5 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Time15 ms - pick-up, 16 ms - drop-out
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Hold-in Power Consumption In Va23-23 VA 60 Hz, 25-25 VA 50 Hz
Local Publishable Date2026-01-12
Future Imap525.62
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 18...AWG 12 copper
Electrical Connectionscrew clamp terminals
Number Of Poles4P
Product Or Component Typerelay
Relay Typetiming
Sustainable PackagingYes
Time Delay Range0.2...60 s
Pep CodeENVPEP1310013EN
Width Nominal2.23 in
Package Weight(Lbs)1.216 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1409020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1310013EN
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
