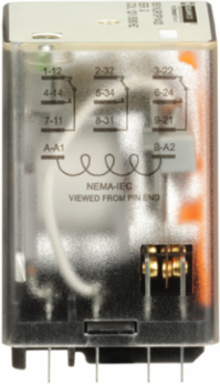

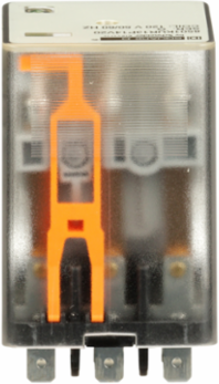

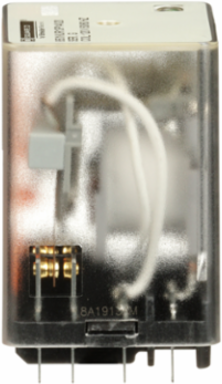

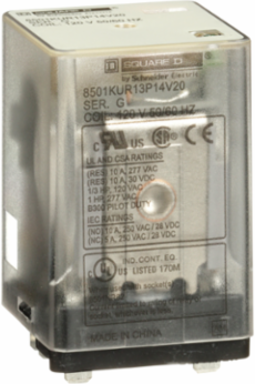

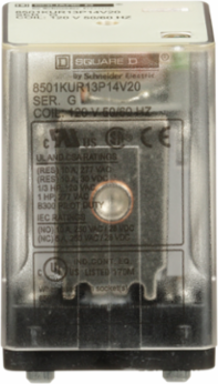

Square D 8501KUR13P14V20 Harmony Relay, 3PDT, 10A at 120V AC, LED Indicator, Socket Mount, 1.4 Inch Depth
Square D 8501KUR13P14V20 Harmony Relay, 3PDT, 10A at 120V AC, LED Indicator, Socket Mount, 1.4 Inch Depth
- MPN: 8501KUR13P14V20
- UPC: 785901981756
- PPN: SCH-8501KUR13P14V20
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$48.20/ EA
Description
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Specifications
Complementary
- Contacts Material
- silver alloy (AgNi)
- Shape Of Pin
- spade
- Operating Time
- 20 ms - pick-up || 20 ms - drop-out
- Maximum Switching Voltage
- 300 V AC || 30 V DC
Rated Power In Hp1 hp 277 V AC || 0.33 hp 120 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 10 A 30 V DC resistive control circuit UL 508
Product Compatibility8501NR82
Specifications
- [Uc] Control Circuit Voltage
- 120 V AC
- Relay Type
- general purpose
- Mounting Support
- socket
- Product Or Component Type
- relay
Local Signallingindicator light relay energised LED
Range Of Product8501K
Switch Function3PDT
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL listed || UL recognized || CSA || CE
- Height
- 2.25 in
- Depth
- 1.4 in
Ambient Air Temperature For Operation-40-131 °F
Width1.37 in
