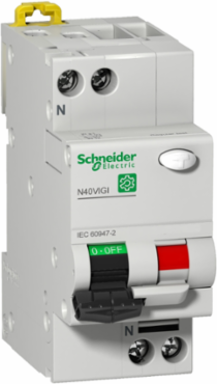

Schneider Electric M9D14610 Multi9 N40 Vigi RCBO 1P+N 10A C Curve 300mA IP20/IP40
- MPN: M9D14610
- PPN: SCH-M9D14610
CAD
$471.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 10A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 300mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard. The Icn rated short circuit breaking capacity is up to 6000 A according EN/IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A green strip on the toggle guarantees opening of all the poles in safety conditions. This product is compliant with EN/IEC 61009-1 and EN/IEC 60947-2 standards. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 125g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -30°C to 70°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Depth70 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length13 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 10 A 50 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Local Signalling
- ON/OFF indication, fault indication
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03041054610328679, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.061780609266315435
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 17.23386046511628
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 9 mm between phase and neutral
- Control Type
- toggle
- Device Application
- distribution
- Electrical Durability
- 20000 cycles
- Energy Efficiency Optimized
- False
- Mechanical Durability
- 20000 cycles
- Mounting Support
- DIN rail
- Network Type
- AC
- Number Of Poles
- 1P + N
- Overvoltage Category
- IV
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- residual current breaker with overcurrent protection (RCBO)
- Range
- Multi9
- Returnability
- No
- Suitability For Isolation
- yes EN/IEC 60947-2
- Tightening Torque
- 2-2 N.m top or bottom
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A EN/IEC 60947-2
- Pep Code
- ENVPEP2306032EN
- Pep Verification Date
- 2023-07-22
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 81 mm
- Certificate Agency
- EN/IEC 60947-2
- [Ue] Rated Operational Voltage
- 240 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kVEN/IEC 60947-2
- Earth-leakage Protection
- integrated
- Earth-leakage Protection Time Delay
- instantaneous
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 185.6
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalstunnel type terminal top or bottom) 0.75-16 mm² - rigidtunnel type terminal top or bottom) 0.33-10 mm² - flexible, tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5140175429202386, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.5164150891940171
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2306032
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2109
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Curve CodeC
Device Short NameN40 Vigi
Electromagnetic Compatibility8/20 µs impulse withstand, 250 A
Magnetic Tripping Limit8.5 x In +/- 20 % AC
Mounting Modeclip-on
Network Frequency50 Hz
Neutral Positionleft
Number Of Protected Poles1
Power Losses Per Pole3.2 W
Product NameMulti9 N40 Vigi
Provision For Padlockingpadlockable
Residual Current Tripping Technologyvoltage independent
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Tropicalisation2 IEC 60068-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 230V (U) and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles 1P+N& 10- Rated breaking capacity Icn = 6000A& 10- Tripping curve C& 10- Sensitivity 30mA& 10- Type of differential protection AC
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %47
Width Nominal36 mm
[Ics] Rated Service Breaking Capacity4.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50 Hz
[Ui] Rated Insulation Voltage400 V AC 50 Hz EN/IEC 60947-2
Earth-leakage Sensitivity300 mA
Earth-leakage Protection Classtype AC
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)199.000 g
Warranty (In Months)18
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 19.35648425260014
- Ambient Air Temperature For Operation
- -5-60 °C-5-60 °C
- Environmental Disclosure
- ENVPEP2306032EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2306032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
9 Mm Pitches4
Circularity ProfileENVEOLI2306032
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2023-07-22
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- residual current breaker with overcurrent protection (RCBO)
ETIM
- ETIM 8
- EC000905
ETIM 9EC000905
Surge Protection And Filtering Attributes
- Surge Current
- 250 A
