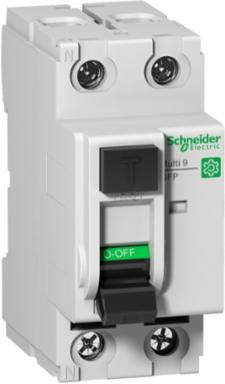

Schneider Electric M9R44225 Multi9 GFP Residual Current Circuit Breaker, 2P, 25A, 300mA
- MPN: M9R44225
- PPN: SCH-M9R44225
- UNSPSC: 39121633
CAD
$687.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, a sensitivity of 260mA with a A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Features
- Protection of persons against electric shock by indirect contact
- Protection of installations against insulation faults
- Compliant with UL 1053 and EN/IEC 61008-1 standards
- Green strip on the toggle ensuring physical contact opening, allowing safe downstream operations
- Presence of a test button to check the correct functioning of the device
- Fault indication by a red mechanical indicator on front face
- Ideal for operation in environments with a humid atmosphere and/or polluted by aggressive agents
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
| Depth | 60 mm |
|---|
Physical Attributes
| Color | Gray |
|---|
| Wire Stripping Length | 14 mm for top or bottom connection |
|---|
Complementary Attributes
| Line Rated Current | 25 A 40 °C EN/IEC 61008-1 |
|---|---|
| Ue Rated Operational Voltage | 480Y/277 V AC 60 Hz240/415 V AC 50 Hz |
| Uimp Rated Impulse Withstand Voltage | 6 kVEN/IEC 61008-1 |
| Rated Breaking And Making Capacity | Idm 1500 A EN/IEC 61008-1 |
|---|---|
| Ui Rated Insulation Voltage | 440 V AC 50/60 Hz |
| Rated Conditional Short Circuit Current | Inc 10 kA 100 A gG |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Poles Description | 2P |
| Certificate Agency | IEC, UL |
| Local Publishable Date | 2026-07-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0627 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Connection Pitch | 18 mm between phases |
| Control Type | toggle |
| Device Short Name | GFP |
| Energy Efficiency Optimized | False |
| Locking Options Description | padlocking in OFF position |
| Mounting Mode | clip-on |
| Network Frequency | 50/60 Hz |
| Neutral Position | left |
| Power Losses Per Pole | 1.4 W |
| Product Name | Multi9 GFP |
| Range | Multi9 |
| Residual Current Tripping Technology | voltage independent |
| Sustainable Packaging | Yes |
| Total Power Losses | 2.8 W |
| Utilisation Category | AC-23A EN/IEC 61008-1 |
| Rated Current 3 | 25 A |
| Height Nominal | 81 mm |
| Nbr. Of Units In Pkg. | 1 |
| Tsca Regulation | Does not contain Section 6H Chemical |
| Earth Leakage Sensitivity | 260 mA UL 1053300 mA EN/IEC 61008-1 |
| Earth Leakage Protection Time Delay | instantaneous |
| Warranty In Months | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Connections Terminals | tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Contact Position Indicator | yes |
| Device Application | distribution |
| Electromagnetic Compatibility | 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1 |
| Local Signalling | ON, OFF, fault trip |
| Mechanical Durability | 20000 cycles |
| Mounting Support | DIN rail |
| Network Type | AC |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | residual current circuit breaker (RCCB) |
| Range Of Product | Multi9 |
| Returnability | Yes |
| Tightening Torque | 3.5-3.5 N.m top or bottom |
| Tropicalisation | 2 IEC 60068-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Earth Leakage Sensitivity 1 | 300 mA |
| Width Nominal | 36 mm |
| Customs Code | 8536200040 |
| Oecd Pfas Regulation | Item contains PFAS Chemicals |
| Earth Leakage Protection Class | type A-SI (Super Immunised) |
| Halogen Free Status | Product contains halogen above thresholds |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| 9 Mm Pitches | 4 |
| Environmental Disclosure | ENVPEP2301023EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2301023EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -25-60 °C-25-60 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 55-55 °C |
General Attributes
| Product Or Component Type | residual current circuit breaker (RCCB) |
|---|
| Range Of Product | Multi9 |
|---|
ETIM
| ETIM 8 | EC000003 |
|---|---|
| ETIM 10 | EC000003 |
| ETIM 9 | EC000003 |
|---|
