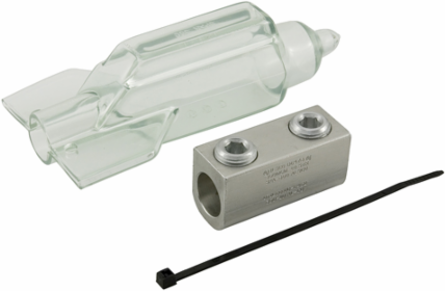

ILSCO SPAR-350 RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 350-10, UL, CSA
- MPN: SPAR-350
- UPC: 783669857306
- PPN: ILC-SPAR-350
CAD
$97.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
RocketSplice Insulated Aluminum Splicer/Reducer, Dual Rated, Conductor Range 350-10, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.78 in | 45.212 mm |
|---|---|
| Weight | 0.712 lbs |
| Length | 6.25 in | 158.75 mm |
|---|---|
| Width | 3.245 in | 82.423 mm |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 5/16 |
|---|---|
| Height BX (IN) | 3.75 |
| Length (mm) | 158.75 |
| Width BX (IN) | 6.5 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 45.212 |
| Weight BX (LB) | 2.531 |
| Width (mm) | 82.423 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 2 |
| Number of Ports Tap | 1 |
| Contains DE-OX® | No |
|---|---|
| Number of Poles | 1 |
| Wire Orientation | Parallel |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Solid (Secondary, tap, load) | 10 Sol |
|---|---|
| Conductor Range AL Stranded (Secondary, tap, load) | 350 kcmil - 10 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 10 Sol |
| Conductor Range CU Stranded (Secondary, tap, load) | 350 kcmil - 10 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 350 kcmil - 10 Str |
|---|---|
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol |
| Conductor Range CU Stranded (Primary, run, main, line) | 350 kcmil - 10 Str |
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-1 |
| Carton Quantity Description | STD PACK QTY 3 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366985730 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 1 - 2 AWG = 150, 1/0 - 2/0 AWG = 200, 3/0 - 4/0 AWG = 250, 250 kcmil = 300, 300 - 350 kcmil = 350, 4 - 10 AWG = 100 |
| Wire Binding Screw Size | 11/16 |
|---|
Color
| Color | Clear |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
