Schneider Electric XVR08B04 Harmony XVR 84mm Rotating Beacon, Red, 24V AC/DC, IP65
Schneider Electric XVR08B04 Harmony XVR 84mm Rotating Beacon, Red, 24V AC/DC, IP65
- MPN: XVR08B04
- PPN: SCH-XVR08B04
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$237.25/ EA
Description

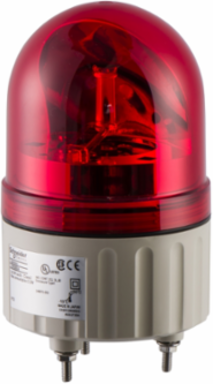

This red beacon is part of the range of rotating beacons Harmony XVR diameter 84mm. It is supplied complete and pre-cabled. Supply voltage is 24V AC/DC and degree of protection is IP 23 and (IP 65 with accessories). It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.
Specifications
Environment
- Product Certifications
- UL
- Standards
- IEC 61000-6-4 || IEC 61000-6-2
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-10-50 °C
Ambient Air Temperature For Storage-35-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1402018EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1402018EN
Complementary
- Clamping Connection Capacity
- 0.83 mm²
- Cable Length
- 500 mm
- Net Weight
- 0.3 kg
- Current Consumption
- 125 mA
- Supply Voltage Limits
- 19-30 V DC || 21.6-26.4 V AC
- Material
- ABS (acrylonitrile butadiene-styrene): body part || PC: globe

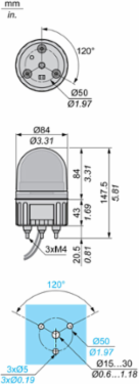

- Cad Overall Depth
- 84 mm
Flashing Frequency2.3 Hz
MarkingCE
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Awg GaugeAWG 18
Product Mountingby 3 M4 screws
Cad Overall Width84 mm
Specifications
- Range Of Product
- Harmony XVR
- Light Source
- high luminosity LED, red
- Ip Degree Of Protection
- IP65 IEC 60529 with accessory) || IP23 IEC 60529
- Device Short Name
- XVR
Mounting Diameter84 mm
Product Or Component Typeprewired rotating mirror beacon
Sound Signallingwithout
[Us] Rated Supply Voltage24 V AC/DC
